Overview

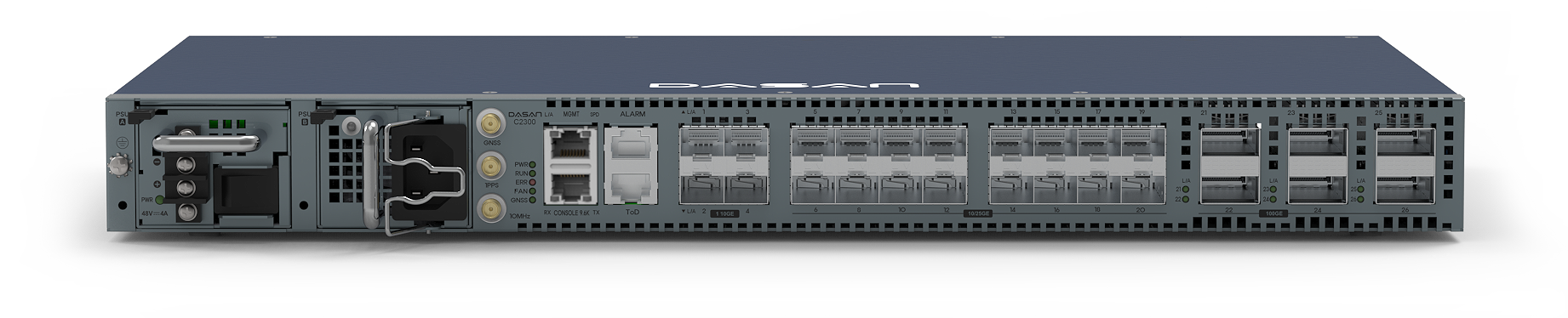

The C2300 is a cost-effective carrier Ethernet switch to support the packet-based transport technology that is based upon circuit-based transport networking. It has been designed for mobile fronthaul networks with demanding subscriber bandwidth requirements and rigid quality-ofservice and security needs. The C2300 can be used for a variety of new, revenue-generating applications, for example as L2 Ethernet LAN switches in high rise buildings or as datacenter application and aggregation switches. The C2300 offers clock synchronization services, allowing for mobile clocking synchronization from the core of the network. The C2300 can be used for various application scenarios as a mobile fronthaul switch for the mobile, business, and residential markets.

Features

• Flash 1GB (NOS)
• SDRAM 4GB DDR4 with ECC
• Support 10/25/100G Ethernet interfaces
• eCPRI fronthaul gateway
• IEEE 1588v2 Clock Synchronization
• Synchronization Ethernet (SyncE)
• Management via CLI or SNMPv2/v3
• User password protected system management
• Data secured through SSH
• Remote network management
• L2 Switching and Ethernet bridging

Specification

Interface:

4 x 1/10GBase-R (SFP/SFP+) 16 x 10/25GBase-R (SFP+/SFP28) 6 x 100GBase-R (QSFP28/QSFP-DD)

Clock Interface:

1 x 1PPS (SMA) 1 x 10MHz (SMA) 1 x GNSS (SMA) 1 x ToD (RJ45)

Operating Temperature:

-40 ~ 65°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

DC 48 VDC
AC: 100-240 VAC

Power Consumption:

170W (PSU DC) 180W (PSU AC)

Dimensions (W x H x D):

444 x 44 x 250 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• IPv6
• LACP
• VLAN (802.1q QinQ, 8 02.1p)
• L2 Multicast

Clock Synchronization

• IEEE 1588v2
• Integrated Gand Master with internal GNSS receiver
• Class C T-BC/TC
• SynE

TWAMP

• TWAMP Reflector

QoS

• Scheduling
• Classification and queuing

Security

• Out-of-band management
• SSH

Management

• SNMP v1/v2/v3
• Serial/Telnet (CLI)
• RMON
