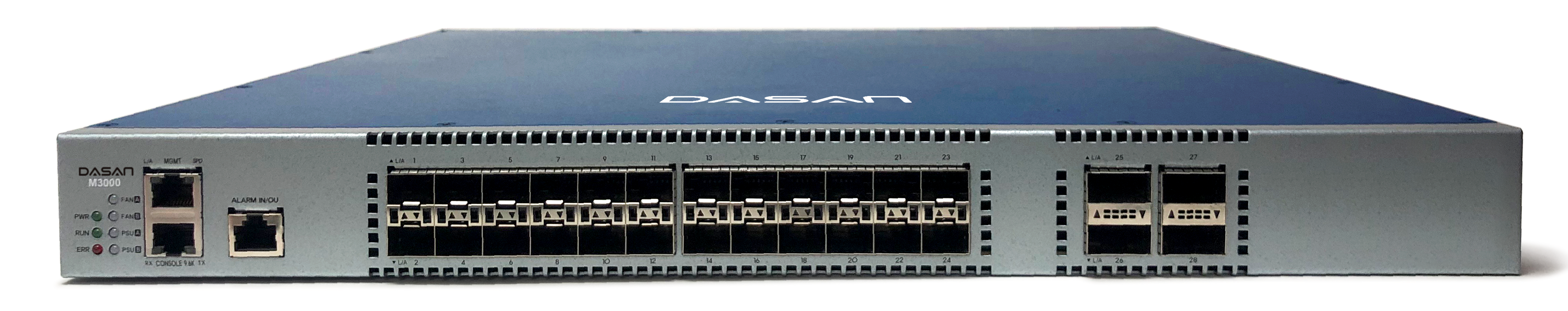

M3000 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The M3000 is a cost-effective carrier Ethernet switch to support the packet-based transport technology that is based upon circuit-based transport networking. It has been designed for mobile backhaul networks with demanding subscriber bandwidth requirements and rigid quality-of­service and security needs. The M3000 can be used for a variety of new, revenue-generating applications, for example as L2/L3 Ethernet LAN switches in high rise buildings or as datacenter appli­cation and aggregation switches. Additionally, M3000 switch helps to enhance network efficiency through offering dedicated L3 functionality. The M3000 offers timing services, allowing for mobile clock­ing synchronization from the core of the network. M3000 can be used for various application scenarios as a mobile backhaul switch for the mobile, business, and residential markets.

Features

• Max. 1000Gbps switching capacity base on I/O full duplex
• Support 10/25/40/100G Ethernet interfaces
• 1-port ALARM interface
• IEEE 1588v2 (TC/BC)
• Synchronization Ethernet (SyncE)
• Management via CLI or SNMPv2/v3
• User password protected system management
• Data secured through SSH
• Remote network management
• L2 Switching and Ethernet bridging

Specification

Service Interface:

24-port - 1GBase-R (SFP) or 10GBase-R (SFP+) or 25GBase-R (SFP28)

Uplink Interface:

4-port - 40GBase-R (QSFP+) or 100GBase-R (QSFP28)

Alram Interface:

1 x Alarm (RJ45) - 3-ports input/1-port output

Operating Temperature:

-20 ~ 60°C

Operating Humidity:

10 ~ 80% (non-condensing)

Power:

DC 24/48 VDC
AC: 100-240 VAC

Power Consumption:

Max. 270W

Dimensions (W x H x D):

440 x 44 x 415.8 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• LACP
• VLAN (802.1q QinQ, 8 02.1p)
• L2 Multicast

Layer 3

• 16K IPv4 Hosts
• OSPFv2/v3
• BGPv4
• VRRP

Clock Synchronization

• IEEE 1588v2 (TC/BC)
• SynE

IP/MPLS

• LDP
• MPLS Traffic Engineering: RSVP-TE, OSPF-TE

Security

• Out-of-band management
• SSH

Management

• SNMP v1/v2/v3
• Serial/Telnet (CLI)
• RMON
