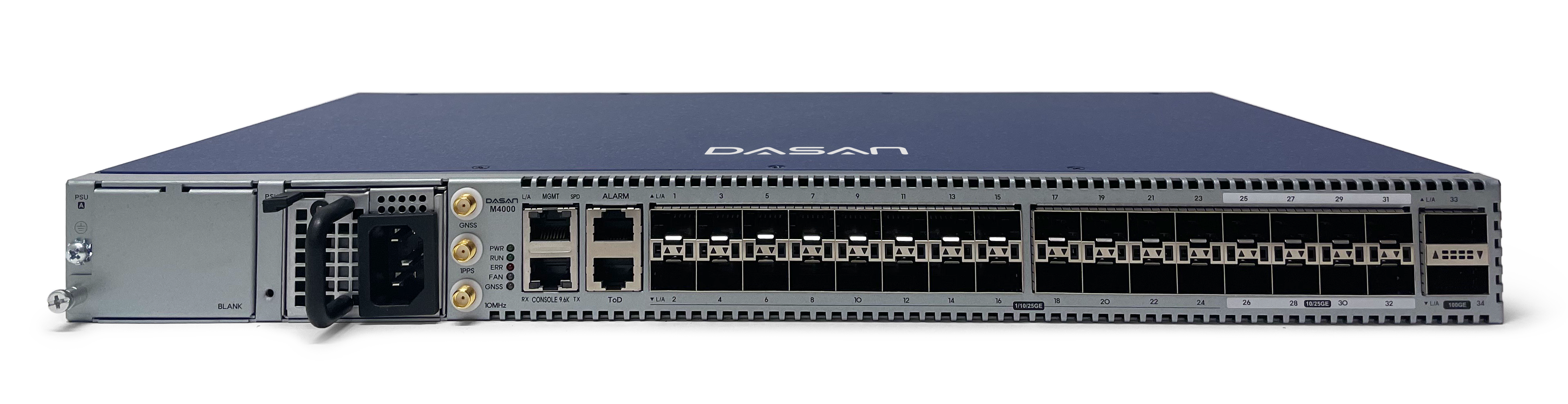

M4000

The M4000 Mobile Backhaul access/aggregation CSR (Cell Site Router) 1U height chassis provides a variety of solutions to configure the unit according to the net­work environment. The M4000 is comprised of 32 optical 10/25GE ports and 2 100GE ports. The M4000 can be used for a variety of new, revenue-generating applications, for example as L2/L3 Ethernet LAN switches in high rise buildings or as datacenter application and aggregation switches. Additionally, M4000 switch helps to enhance network efficiency through offering dedicated L3 functionality.

• Max. 360 Gbps switching capacity base on
I/O full duplex
• Main switching block in Base board with fixed
I/O Interface
• 1-port alarm interface
• Support dual power supplies for redundancy
• Clock Synchronization IEEE 1588v2 (TC/BC)
• Synchronous Ethernet
• Management via CLI or SNMPv1/v2/v3 and RMON
• User password protected system management
• Data secured through SSH
• Enhanced security through RADIUS and TACACS+
• Remote network management
• L2/L3/L4 based ACL (Access Control List)
