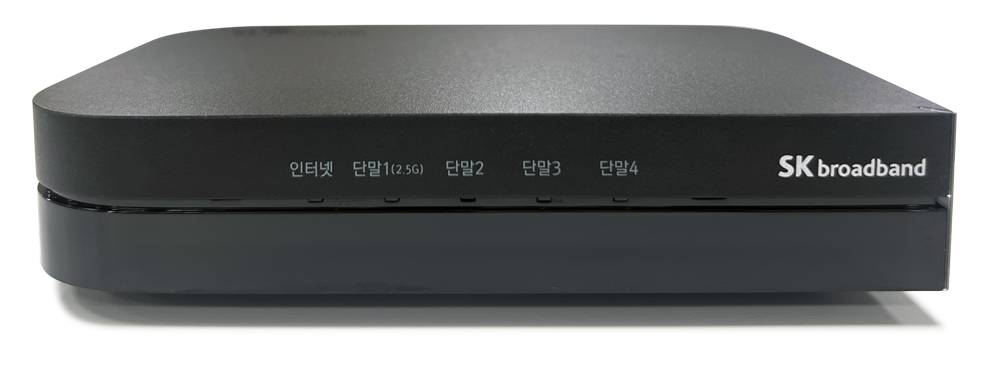

H356S 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

H356S is Customer Premise Equipment (CPE) providing Gigabit Solution with 2-pair UTP cable. The SuperFast solution is targeted for relatively newer sites with UTP cabling installed. This give service providers another option to expand their higher Internet services without re-cabling into an all fiber infrastructure. With DNS leading-edge SuperFast technology, users can enjoy bandwidth-consuming multimedia services such as real-time video, audio and gaming much easier and faster than ever before. The H356S is comprised of 1 WAN port supporting 100M/1G/2.5GBASE-T (RJ45) and 3 LAN ports supporting 10/100/1000BASE-T (RJ45) and 1 LAN ports upporting 100M/1G/2.5GBASE-T.

Features

• Robust Traffic Management
Ensures stable Gigabit service quality and optimal bandwidth allocation using advanced QoS and precise Rate Limiting.
• Seamless IPTV Delivery
Optimizes high-definition media streaming for IPv4 and IPv6 networks via IGMP and MLD Snooping.
• Enhanced Network Security
Protects the local network from unauthorized access and broadcast storms with strict ACLs and Self Loop Detection.
• Secure Remote Management
Provides safe device configuration and monitoring through a Web UI and encrypted SNMP traffic.

Specification

LAN Interface

3 x 10/100/1000BASE-T (RJ45)
1 x 100M/1G/2.5GBASE-T (RJ45)

WAN Interface

1 x 100M/1G/2.5GBASE-T (RJ45)

Operating Temperature

-5 ~ 50°C

Operating Humidity

20 ~ 90% (non-condensing)

Power Adaptor

5VDC 2A

Power Consumption

Max. 5W

Dimensions (W x H x D)

152 x 34.6 x 111mm (with Foot)
152 x 28.6 x 111mm (without Foot)

Capabilities

Network

• NAT/Bridge Mode
• DHCP Server/Client
• QoS
• Rate Limit
• Self Loop Detection
• IGMP snooping
• IGMP Proxy
• ACL (Access Control List)
• IPv6
• MLD Snooping

Management

• Web Management
• SNMPv2
• SNMP Traffic Encryption
