Overview

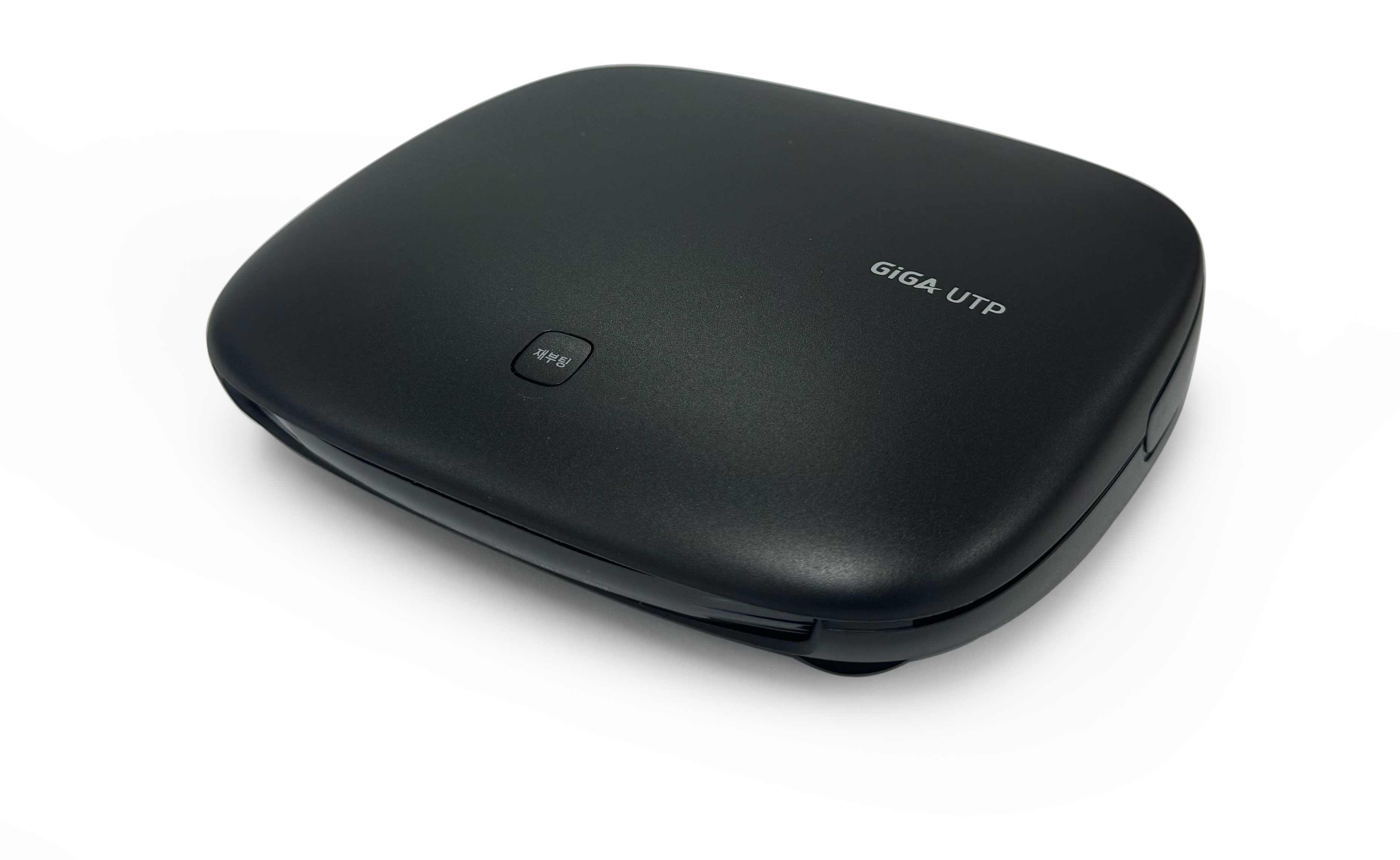

H351 is Customer Premise Equipment (CPE) providing Gigabit Solution with 2-pair UTP cable. H351 has been developed for all clients who want to use more advanced service than the VDSL2 technology on the CPE. The SuperFast solution is targeted for relatively newer sites with UTP cabling installed. This give service providers another option to expand their higher Internet services without re-cabling into an all fiber infrastructure. With DNS leading-edge SuperFast technology, users can enjoy bandwidth-consuming multimedia services such as real-time video, audio and gaming much easier and faster than ever before. The H351 is comprised of 1 WAN port supporting 10/100 /500/1000 Base-T (RJ45) and 4 LAN ports supporting 10/ 100/1000Base-T (RJ45). The H351 supports high speed internet access service.

Features

• 1-port 10/100/500(@2Pair)/1000Base-T for uplink
• 4-port 10/100/1000Base-T for service
• Advanced QoS & Network Management
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging

Specification

Flash Memory:

16MB

SDRAM Memory:

128MB

LAN Interface:

4 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x 10/100/500/1000Base-T (RJ45)

Operating Temperature:

0 ~ 50°C

Operating Humidity:

20 ~ 80% (non-condensing)

Power Adaptor:

5VDC 2A

Power Consumption:

3.3W

Dimensions (W x H x D):

140 x 38 x 120 mm

Capabilities

L2 Switch

• Untagged port configuration
• IEEE802.1D and IEEE802.1Q bridging
• Standard Ethernet bridging
• MAC address learning with auto aging
• Support Self-Loop prevention

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• Weighted Round Robin (WRR)
• 802.1Q (VLAN tag) QoS mapping, DSCP/CoS
• 4 queues per port

VLAN

• IEEE802.1Q VLAN

Management

• IEEE802.3x flow control LED indications for maintenance
