Overview

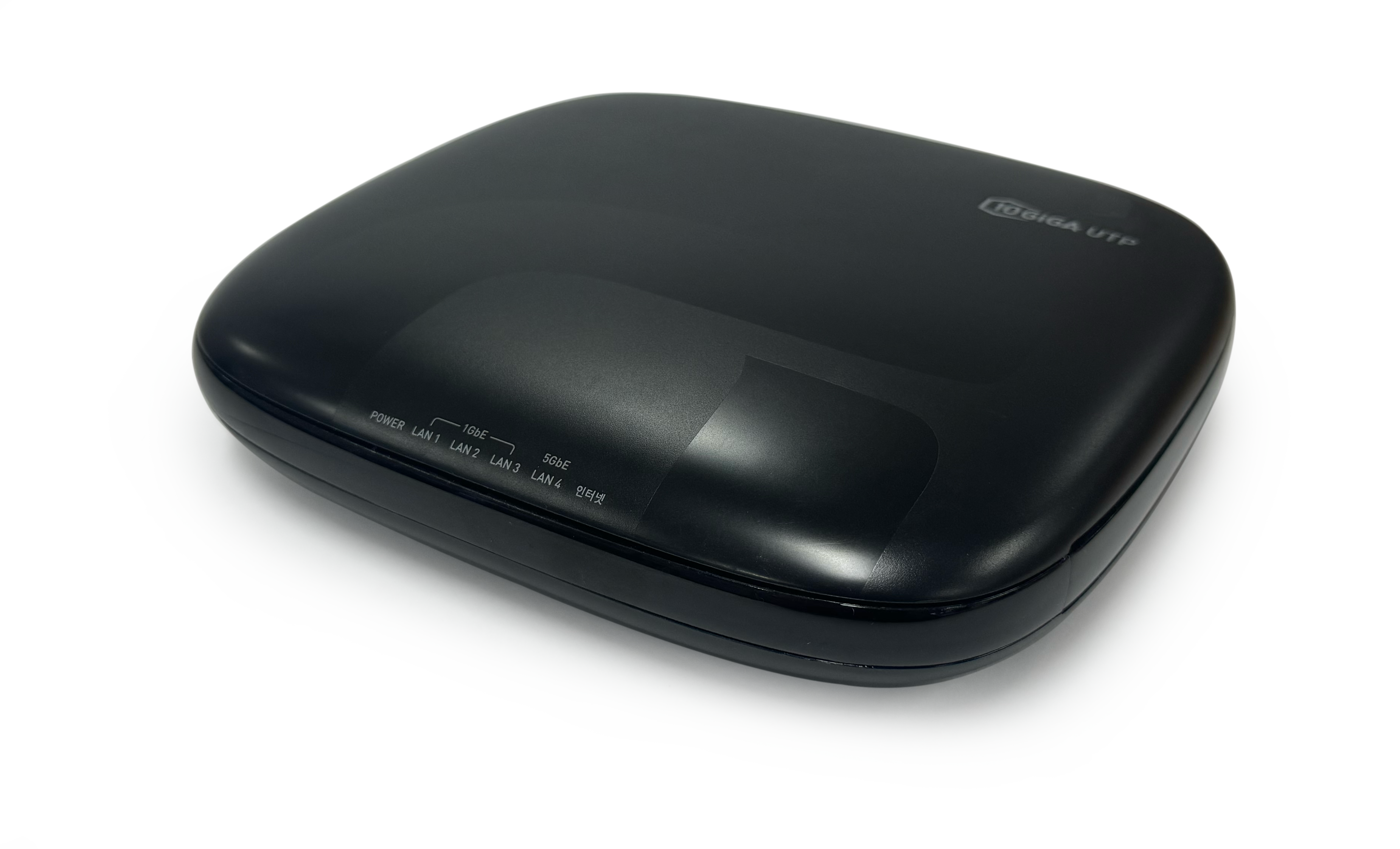

H360K is Customer Premise Equipment (CPE) providing Gigabit Solution with 2-pair UTP cable. The SuperFast solution is targeted for relatively newer sites with UTP cabling installed. This give service providers another option to expand their higher Internet services without re-cabling into an all fiber infrastructure. With DNS leading-edge SuperFast technology, users can enjoy bandwidth-consuming multimedia services such as real-time video, audio and gaming much easier and faster than ever before. The H360K is comprised of 1 WAN port supporting 100/1G /2.5G/5G Base-T (RJ45) and 3 LAN ports supporting 10/ 100/1000Base-T (RJ45) and 1 LAN ports supporting 100/ 1G/2.5G/5G Base-T.

Features

• 1-port 100/1G/2.5G/5G Base-T for uplink
• 3-port 10/100/1000Base-T and
1-port 100/1G/2.5G/5G Base-T for service
• Advanced QoS & Network Management
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging

Specification

Flash Memory:

128MB

SDRAM Memory:

512MB

LAN Interface:

3 x 10/100/1000Base-T (RJ45) 1 x 100/1G/2.5G/5GBase-T (RJ45)

WAN Interface:

1 x 100/1G/2.5G/5GBase-T (RJ45)

Operating Temperature:

0 ~ 50°C

Operating Humidity:

20 ~ 80% (non-condensing)

Power Adaptor:

12VDC 2A

Power Consumption:

10.39W

Dimensions (W x H x D):

180 x 40 x 160 mm

Capabilities

L2 Switch

• Untagged port configuration
• IEEE802.1D and IEEE802.1Q bridging
• Standard Ethernet bridging
• MAC address learning with auto aging
• Support Self-Loop prevention

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• Weighted Round Robin (WRR)
• 802.1Q (VLAN tag) QoS mapping, DSCP/CoS
• 4 queues per port

VLAN

• IEEE802.1Q VLAN

Management

• IEEE802.3x flow control LED indications for maintenance
