Overview

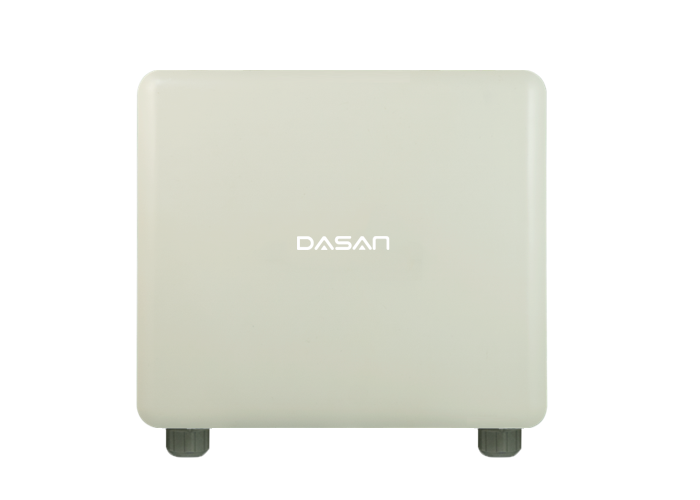

The W645 is a next-generation Outdoor Access Point product that adopts the Wi-Fi 6 802.11ax protocol and supports wireless speeds of up to 1.15 Gbps + 2.4 Gbps + 4.8 Gbps through Triple-Radio technology. It supports security of user devices, and supports wireless RF control, mobile access, QoS (Quality of Service), and complete L2/L3 roaming. The W645 is designed to be fully in outdoor environments through a hardware design that satisfies the waterproof/dustproof rating of IP67/ IP68. The W645 is an outdoor AP suitable for various enterprise scenarios such as public Wi-Fi, education, hotels and office environments.

Features

• IEEE802.11a/b/g/n/ac/ax compliant (Wi-Fi 6)
• 2.4GHz & 5GHz & 6GHz (Triple-Radio, Triple-Band)
• OFDMA, MU-MIMO, BSS Coloring
• Wireless performance up to 7.95 Gbps
• Interface
- 1 Port 10/100/1000Base-T
- 1 Port 1G/2.5G/5GBase-T
• WPA(TKIP), WPA2/3 Enterprise, WPA-PSK,
WEP(64/128 bit)
• Standalone AP/Controller-Based AP/Easy Mesh AP

Specification

Spatial Streams:

Triple-Radio, Dual-Band,
R1 : 2.4GHz 4×4:4(ax)
R2 : 5GHz 4×4:4(ax)
R3 : 6GHz 4×4:4(ax):
IEEE 802.11: 802.11 a/b/g/n/ac/ax (Wi-Fi 6)

LAN Interface

1 x 1G/2.5G/5G/10GBase-T 1 x 10/100/1000Base-T

Antenna Type:

Non-directional built in antenna

Antenna Gain

~7dB

IP Rating:

IP67/IP68

Operating Temperature:

-30 ~ 65°C

Operating Humidity:

0 ~ 100% (non-condensing)

PoE:

802.3bt/at

Power Consumption:

< 38W

Dimensions (W x H x D):

275 x 70 x 245 mm

Capabilities

Client Capacity

• Up to 1,024 clients per AP

SSID

• Up to 24 SSID

WLAN

• Hidden SSID• Authentication configuration by SSID
• OFDAM & MU-MIMO (UL/DL)

Security

• PSK, WEB• WPA(TKIP), WPA-PSK, WPA2/3 Enterprise, WEP(64/128 bit)• Unauthorized AP detection
• ACL (Access Control List)
• RADIUS

Management /Maintenance

• SNMP v1/v2C/v3• Web management
• Standalone AP/Controller-based AP /Easy Mesh AP
• TR-069• Syslog
