W640

WiFi Gateways and Extenders

Subscriber Solution
이전으로

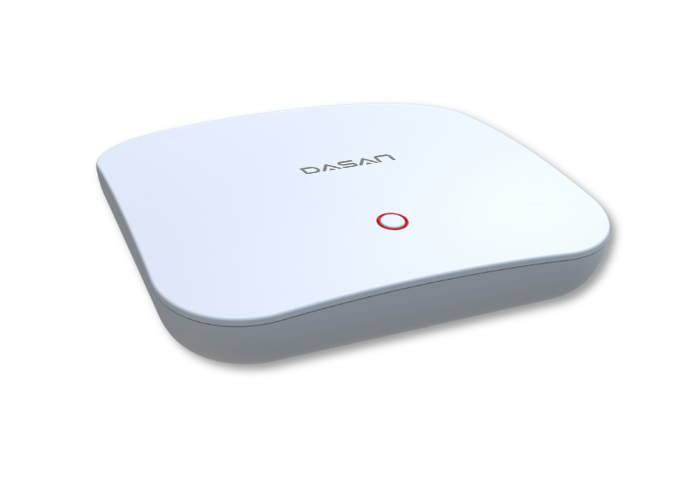

W640 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

With the growing popularity of personal digital devices such as tablet, smart phone, laptop, and other mobile computing tools, the needs is being increased for con­figuring the consolidated wireless network, and estab­lishing the smart environment. W640 is a Wi-Fi 6 indoor Access Point based on 802.11 a/b/g/n/ac/ax, which supports Triple-Radio and Triple -Band. It supports WPA3 to protect the security of user devices, and supports wireless RF control, mobile access, QoS (Quality of Service), and complete L2/L3 roaming. In this regard, the W640 is the perfect fit for the enter­prise and home customers that want to deploy the opti­mized secure wireless networks in the office, workplace, entire campus or apartment houses.

Features

• Interface
- 1-port 10/100/1000Base-T
- 1-port 1/2.5/5GBase-T
• IEEE802.11a/b/g/n/ac/ax compliant (Wi-Fi 6)
• Built-in smart antenna
• OFDMA, MU-MIMO, BSS Coloring
• Hidden SSID
• Wireless performance up to 7.95 Gbps
• Standalone AP/Controller-Based AP/Easy Mesh AP
• WPA(TKIP), WPA-PSK, WPA2/3 Enterprise,
WEP(64/128 bit)
• 2.4GHz & 5GHz & 6GHz (Triple-Radio, Triple-Band)

Specification

Spatial Streams:

Triple-Radio, Triple-Band,
R1 : 2.4GHz 4×4:4(ax)
R2 : 5GHz 4×4:4(ax)
R3 : 6GHz 4×4:4(ax):
IEEE 802.11: 802.11 a/b/g/n/ac/ax (Wi-Fi 6)

LAN Interface

1 x 10/100/1000Base-T (RJ45) 1 x 1/2.5/5GBaseT (RJ45)

Console Port:

Support

Antenna Type:

omni-directional antenna (MU-MIMO)

Operating Temperature:

0 ~ 55°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

DC Power Injector

Power Consumption:

< 38W

Dimensions (W x H x D):

230 x 50 x 230 mm

Capabilities

Client Capacity

• Up to 1,024 clients per AP

SSID

• Up to 24 SSID

WLAN

• Hidden SSID
• Authentication and VLAN configuration by SSID
• OFDAM & MU-MIMO (UL/DL)

Security

• PSK, WEB• WPA(TKIP), WPA-PSK, WPA2/3 Enterprise, WEP(64/128 bit)• Unauthorized AP detection
• ACL (Access Control List)
• RADIUS

Management /Maintenance

• SNMP v1/v2C/v3• Web management
• Standalone AP/Controller-based AP /Easy Mesh AP
• TR-069• Syslog
