Overview

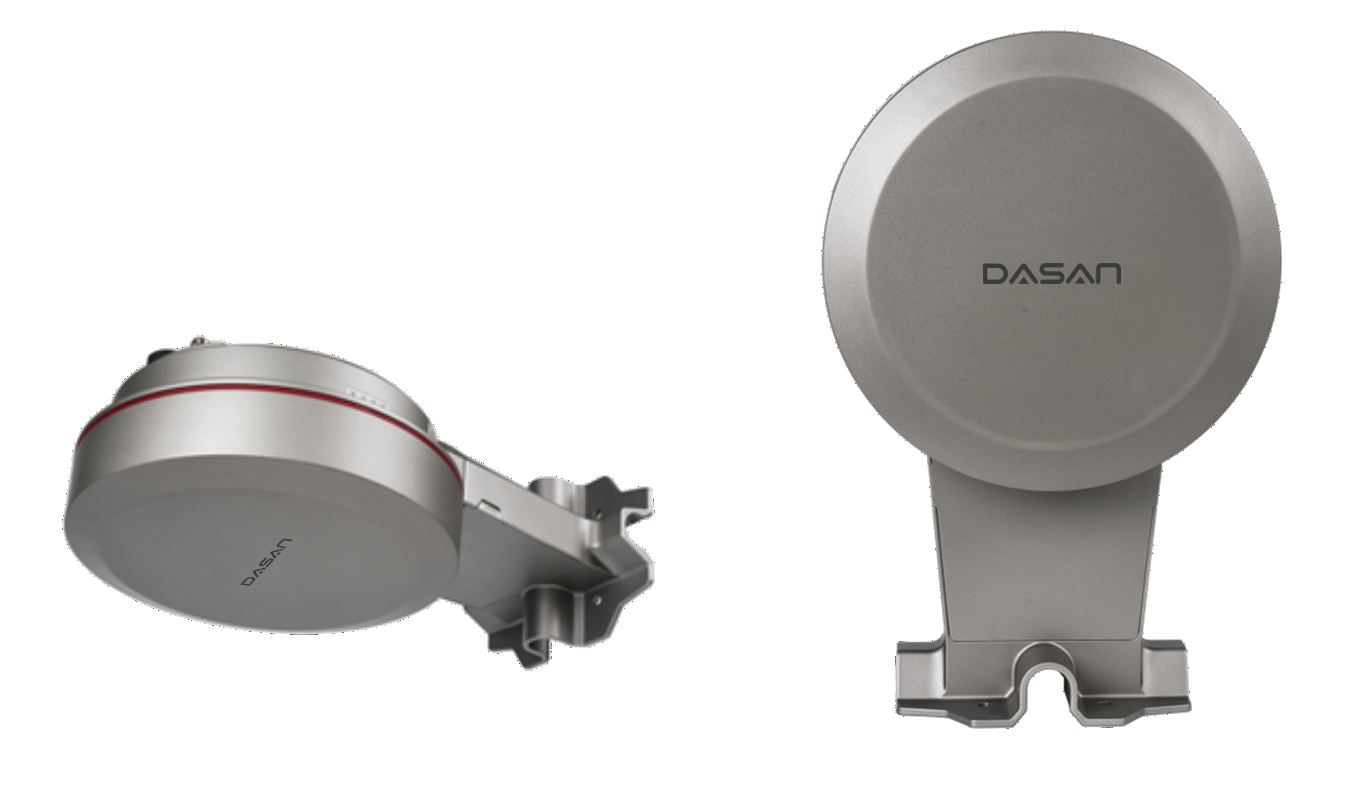

The W345 is a next-generation Outdoor Access Point product that adopts the Wi-Fi 6 802.11ax protocol and supports wireless speeds of up to 2,400 Mbps + 1,150 Mbps + 867 Mbps through Triple-Radio technology. It supports security of user devices, and supports wireless RF control, mobile access, QoS (Quality of Service), and complete L2 roaming. The W345 is designed to be fully in outdoor environments through a hardware design that satisfies the waterproof/dustproof rating of IP67/IP68. W345 allow you to meet flexible wireless Wi-Fi coverage range in different environmental requirements. The W345 is an outdoor AP suitable for various enterprise scenarios such as public Wi-Fi, education, hotels and office environments.

Features

• IEEE802.11a/b/g/n/ac/ax compliant (Wi-Fi 6)
• 2.4GHz & 5GHz (Triple-Radio, Dual-Band)
• OFDMA, MU-MIMO, BSS Coloring
• Built-in smart antenna
• Interface
- 1 Port 1G/2.5G/5G/10GBase-T RJ45
- 1 Port 10GBase-X SFP+
- 1 Port Console
• WPA(TKIP), WPA2/3 Enterprise, WPA-PSK,
WPA3 Enhanced Open, WEP(64/128 bit)
• Standalone AP or Controller-Based AP

Specification

Spatial Streams:

Triple-Radio, Dual-Band,
2.4GHz 4x4:4SS MU-MIMO,
5GHz(1) 2×2:2SS MU-MIMO,
5GHz(2) 4×4:4SS MU-MIMO
IEEE 802.11: 802.11 a/b/g/n/ac/ax (Wi-Fi 6)

LAN Interface

1 x 100/1G/2.5G/5G/10GBase-T

Optical Interface:

1x 10GBase-X

Antenna Type:

Built-in omni-directional antenna, Two External Antenna ports (WDS)
Antenna Gain: 2.4G:6dBi / 5G:6dBi

IP Rating:

IP67/IP68

Operating Temperature:

-40 ~ 65°C

Operating Humidity:

0 ~ 100%

PoE:

802.3af/at

Dimensions (W x H x D):

310 (diameter) x 120 (depth)

Capabilities

Client Capacity

• Up to 1,024 clients per AP

SSID

• Up to 32 SSID

WLAN

• Hidden SSID• Authentication and VLAN configuration by SSID
• Temporary SSID in case of controller failure
• AP load balancing• Rate limiting based STA/SSID/AP
• WDS

L2 Switch

• IPv4/IPv6, IPv6 CAPWAP tunnel, Multicast

Security

• PSK, WEB• WPA(TKIP), WPA-PSK, WPA2/3 Enterprise, WPA3 Enhanced Open, WEP(64/128 bit)
• Unauthorized AP detection
• ACL (Access Control List)
• RADIUS

Management /Maintenance

• SNMP v1/v2C/v3, Telnet, SSH, TFTP, FTP, web management
• Statistics and logs
