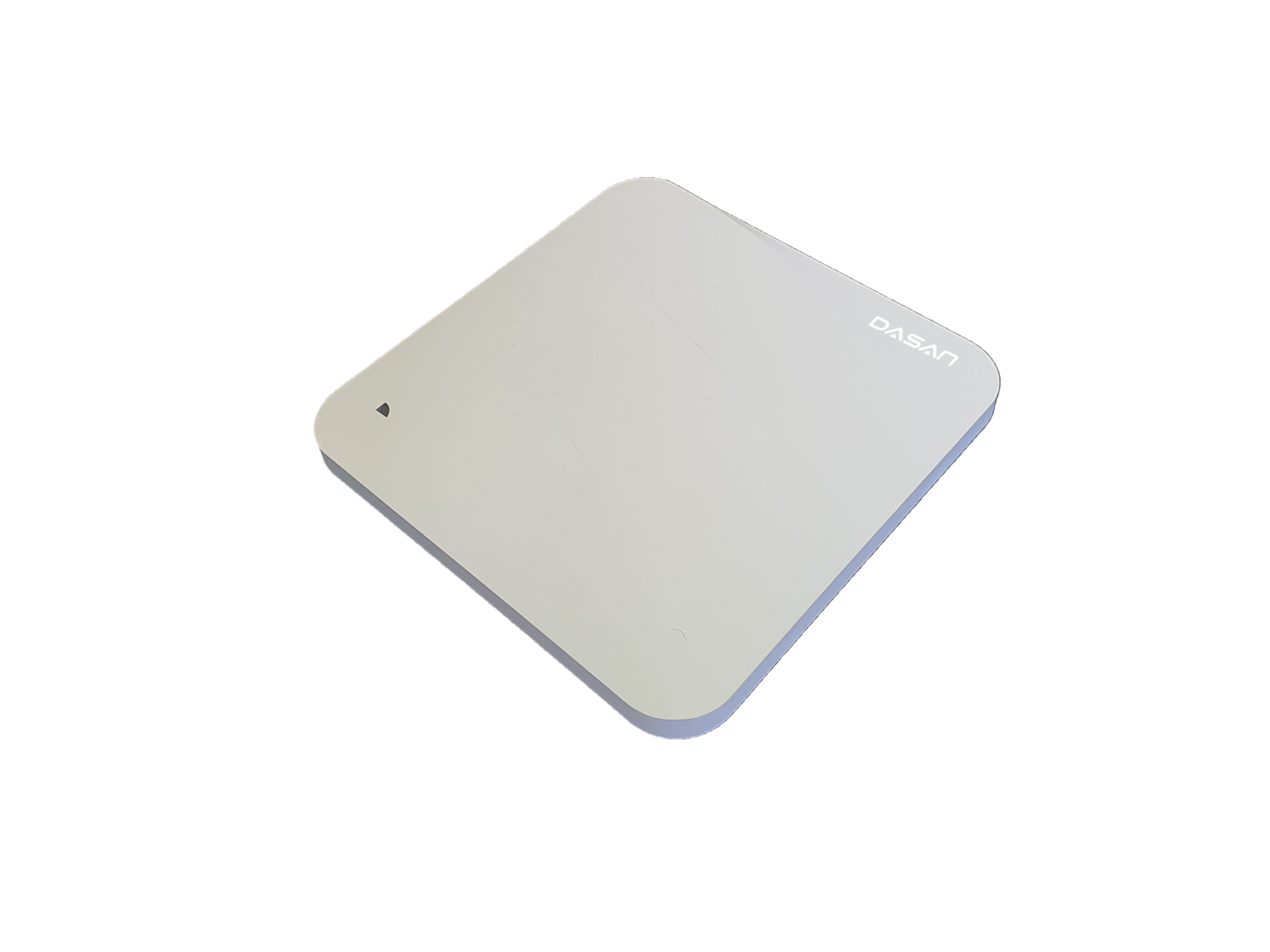

W340 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

With the growing popularity of personal digital devices such as tablet, smart phone, laptop, and other mobile computing tools, the needs is being increased for configuring the consolidated wireless network, and establishing the smart environment. W340 is a Wi-Fi 6 Gigabit Ethernet indoor Access Point based on 802.11a/b/g/n/ac/ax, which supports Triple Radio and Dual-band. It supports WPA3 to protect the security of user devices, and supports wireless RF control, mobile access, QoS (Quality of Service), and complete L2 roaming. In this regard, the W340 is the perfect fit for the enterprise and home customers that want to deploy the optimized secure wireless networks in the office, workplace, entire campus or apartment houses.

Features

• 3-port 10/100/1000Base-T interface
• IEEE802.11a/b/g/n/ac/ax compliant (Wi-Fi 6)
• Multiple/hidden SSID
• Advanced QoS & Network Management
• Wireless RF control
• Remote Fault monitoring
• Standalone AP or Controller-Based AP
• WPA(TKIP), WPA2/3, WPA-PSK, WEP(64/128 bit)
• Triple-Radio, Dual-Band

Specification

Spatial Streams:

Triple-Radio, Dual-Band,
R1 : 2.4GHz 4×4:4(ax)
R2 : 5GHz 4×4:4(ax)
R3 : 5GHz 2×2:2(ac):
IEEE 802.11: 802.11 a/b/g/n/ac/ax (Wi-Fi 6)

LAN Interface

3 x 10/100/1000Base-T (RJ45)

Console Port:

Support

Antenna Type:

omni-directional antenna (MU-MIMO)

IP Rating:

IP41

Operating Temperature:

-10 ~ 55°C

Operating Humidity:

5 ~ 95% (non-condensing)

PoE:

802.3af/at

Power Consumption:

< 25.4W

Dimensions (W x H x D):

220 x 48.9 x 220 mm

Capabilities

Client Capacity

• Up to 1,280 clients per AP

SSID

• Up to 48 SSID

WLAN

• Hidden SSID
• Authentication and VLAN configuration by SSID
• Temporary SSID in case of controller failure
• AP load balancing
• Rate limiting based STA/SSID/AP

L2 Switch

• IPv4/IPv6, IPv6 CAPWAP tunnel, Multicast

Security

• PSK, WEB
• WPA(TKIP), WPA-PSK, WPA2/3, WEP(64/128 bit)
• Unauthorized AP detection
• ACL (Access Control List)
• RADIUS

Management /Maintenance

• SNMP v1/v2C/v3, Telnet, SSH, TFTP, FTP, web management
• Statistics and logs
