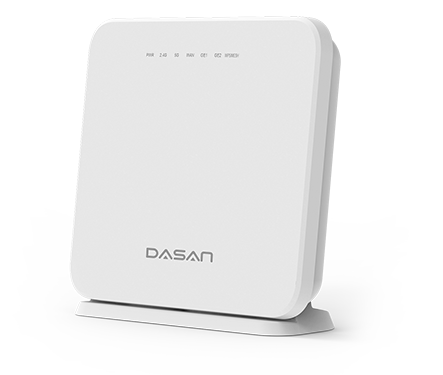

W520CE 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

With the growing popularity of personal digital devices such as tablet, smart phone, laptop, and other mobile computing tools, the needs is being increased for con­figuring the consolidated wireless network, and estab­lishing the smart environment. W520CE is a WiFi 5 Gigabit Ethernet indoor Access Point based on 802.11a/b/g/n/ac, which supports Dual-band & Dual-concurrent. In this regard, the W520CE is the perfect fit for the enterprise and home customers that want to deploy the optimized secure wireless networks in the office, workplace, entire campus or apartment houses.

Features

• 1-port 10/100/1000Base-T for WAN interface
• 2-port 10/100/1000Base-T for LAN interface
• IEEE802.11b/g/n/ac compliant
• Multiple/hidden SSID
• Advanced QoS & Network Management
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• WPA/WPA2/WPA-PSK/WPS2-PSK
• Dual-Band: 2.4GHz/5GHz

Specification

Flash Memory:

128MB

SDRAM Memory:

256MB

LAN Interface:

2 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x 10/100/1000Base-T (RJ45)

Operating Temperature:

-5 ~ 55°C

Operating Humidity:

10 ~ 90% (non-condensing)

Power Adaptor:

12VDC 1.0A

Dimensions (W x H x D):

Wall-Mounting : 170 x 158.5 x 79.5 mm
Stand : 170 x 156.1 x 60.45 mm

Capabilities

Wireless

• IEEE802.11b/g/n/ac radio• Auto/manual channel selection
• WLAN mapping to VLAN
• Max client association count
• 2G 2x2 MIMO, 5G 2x2 MIMO
• WiFi 5: MU-MIMO(TX/RX)

L2 Switch

• IEEE802.1P and IEEE802.1Q
• MAC filtering
• IEEE 802.1d Bridging

Multicast

• IGMP snooping

Security

• RADIUS Client
• CPU access control list

AP Management

• CLI/Telnet
• HTTP/HTTPs
• SNMPv1/v2/v3
