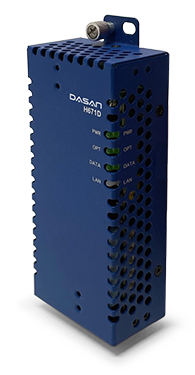

H671D 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H671D delivers triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application. The 1G EPON ONU (Optical Network Unit) H671D incorporates interoperability, key customers’ specific requirements and cost-efficiency. Equipped with IEEE 802.3ah compliant 1G Downstream and 1G Upstream 1G EPON interface. The H671D supports the full Triple Play of services including voice, video, and high-speed internet access service. Also, H671D is manageable at remote side with standard SIEPON. The H671D supports one EPON interface port, one Gigabit Ethernet interface.

Features

• 1-port EPON interface for uplink
• 1-port 10/100/1000Base-T interface
• IEEE 802.3ah EPON ONT
• EPON data rate of 1Gbps/1Gbps(US/DS)
• Advanced QoS & Network Management
• Protection of delay-sensitive traffic based on SLA
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support
• Supports PoE PD 802.3af

Specification

Flash Memory:

4MB

SDRAM Memory:

Embedded CPU

LAN Interface:

1 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x EPON (SFF)

Operating Temperature:

-20 ~ 60°C

Operating Humidity:

5 ~ 90% (non-condensing)

Power:

LAN port: PoE PD 802.3af

Dimensions (W x H x D):

55 x 33 x 125 mm

Capabilities

EPON

• IEEE 802.3ah 1G EPON
• Forward Error Correction (FEC)• Multiple T-CONTs per device
• Multi-point control protocol (MPCP)

L2 Switch

• Untagged port configuration• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port
