H730J

EPON/10GEPON

Subscriber Solution
이전으로

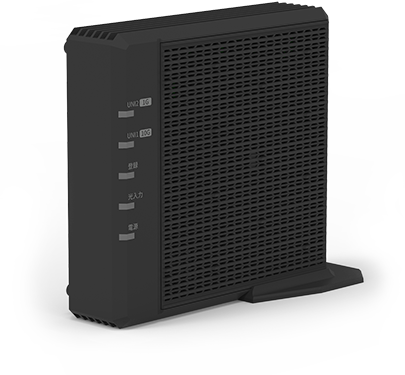

H730J 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H730J delivers triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application. The 10G-EPON ONU (Optical Network Unit) incorporates interoperability, key customers’ specific requirements and cost-efficiency. Equipped with IEEE 802.3av compliant 10G Downstream and 10G Upstream (Asymmetric or Symmetric) 10G-EPON interface. The H730J supports the full Triple Play of services including voice, video, and high-speed internet access service. Also, H730J is manageable at remote side with standard SIEPON-A. 10G-EPON interface port has SFP+ connector type and a high-speed optical access method that has been defined in IEEE 802.3av. This port is linked to OLT on upstream 10.3125Gbps and downstream 10.3125Gbps

Features

• 1-port 10G-EPON interface for uplink
• 1-port 10/100/1000Base-T interface
• 1-port 10GBase-R interface
• IEEE 802.3av 10G-EPON ONT
• 10G-EPON data rate of 10Gbps/10Gbps(US/DS)
• Advanced QoS & Network Management
• Protection of delay-sensitive traffic based on SLA
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support

Specification

Flash Memory:

256MB

SDRAM Memory:

256MB (DDR)

LAN Interface:

1 x 10/100/1000Base-T (RJ45) 1x 1/2.5/5/10GBase-TX (RJ45)

WAN Interface:

1 x 10G-EPON

Operating Temperature:

0 ~ 40°C

Operating Humidity:

10 ~ 85% (non-condensing)

Power Adaptor:

12VDC/1.5A

Dimensions (W x H x D):

140 x 150 x 40 mm

Capabilities

10G-EPON

• IEEE 802.3av 10G-EPON
• Forward Error Correction (FEC)
• Multiple T-CONTs per device
• Multi-point control protocol (MPCP)

L2 Switch

• Untagged port configuration
• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port
