H665

GPON/XGSPON

Subscriber Solution
이전으로

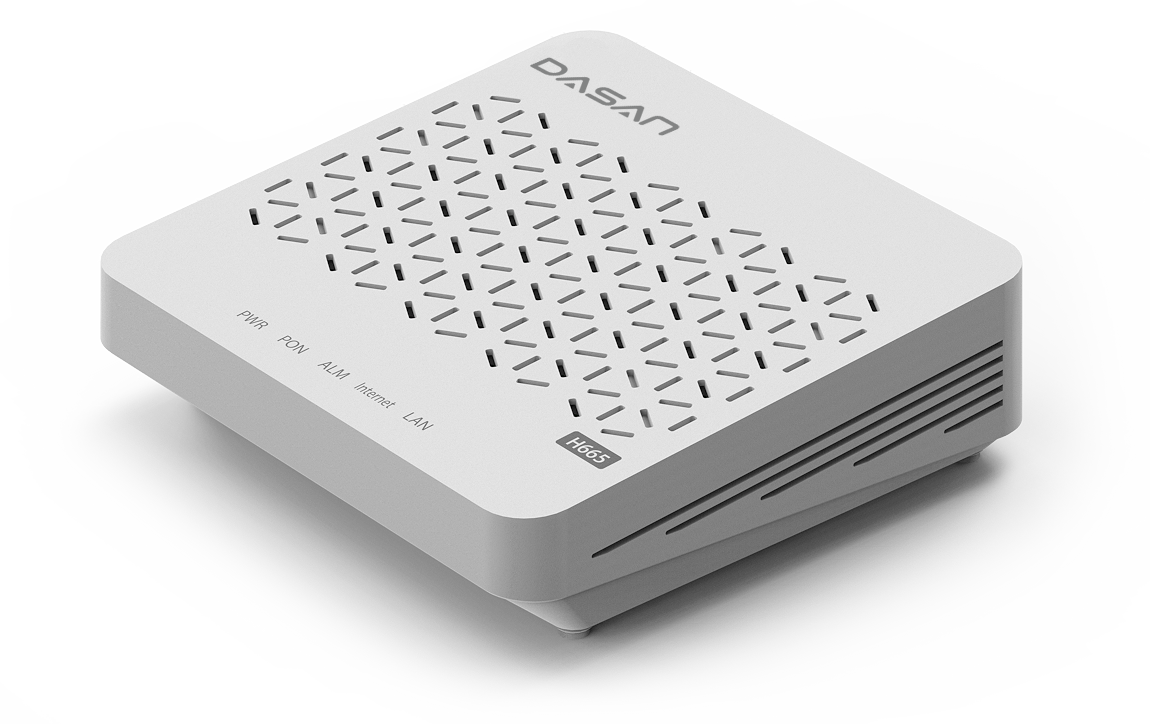

H665 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H665 is Optical Network Terminal (ONT) compliant with ITU-T G.984 standard. H665 was developed for all clients based on Gigabit Passive Optical Network (GPON) technology. GPON technology supports upstream 1.25Gbps and downstream 2.5Gbps data transmission rate. With DNS leading-edge GPON technology, users can enjoy bandwidth-consuming multimedia services such as real-time video, audio and gaming much easier and faster than ever before. The H665 is comprised of 1 GPON uplink port and 1 Gigabit Ethernet downlink port supporting 10/100/ 1000Base-T (RJ45). The H665 supports high speed internet access service. The H665 contains both built-in wire-speed L2 switch and L3 routing gateway with port forwarding, NAT and NAPT address translation, multiple PPPoE clients support for high speed internet service.

Features

• 1-port GPON interface for uplink
• 1-port 10/100/1000Base-T interface
• ITU-T G.984.x compliant GPON ONT
• GPON data rate of 1.2Gbps/2.5Gbps(US/DS)
• Advanced QoS & Network Management
• Protection of delay-sensitive traffic based on SLA
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support

Specification

Flash Memory:

128MB

SDRAM Memory:

128MB (DDR)

LAN Interface:

1 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x GPON (SC/APC)

Operating Temperature:

-5 ~ 50°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power Adaptor:

12VDC 0.5A:

Dimensions (W x H x D):

87 x 25 x 85 mm:

Capabilities

GPON

• ITU-T G.984 compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2 Switch

• Untagged port configuration
• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port

Management

• ITU_T 984.4 compliant with OMCI interface
• IEEE802.3x flow control
