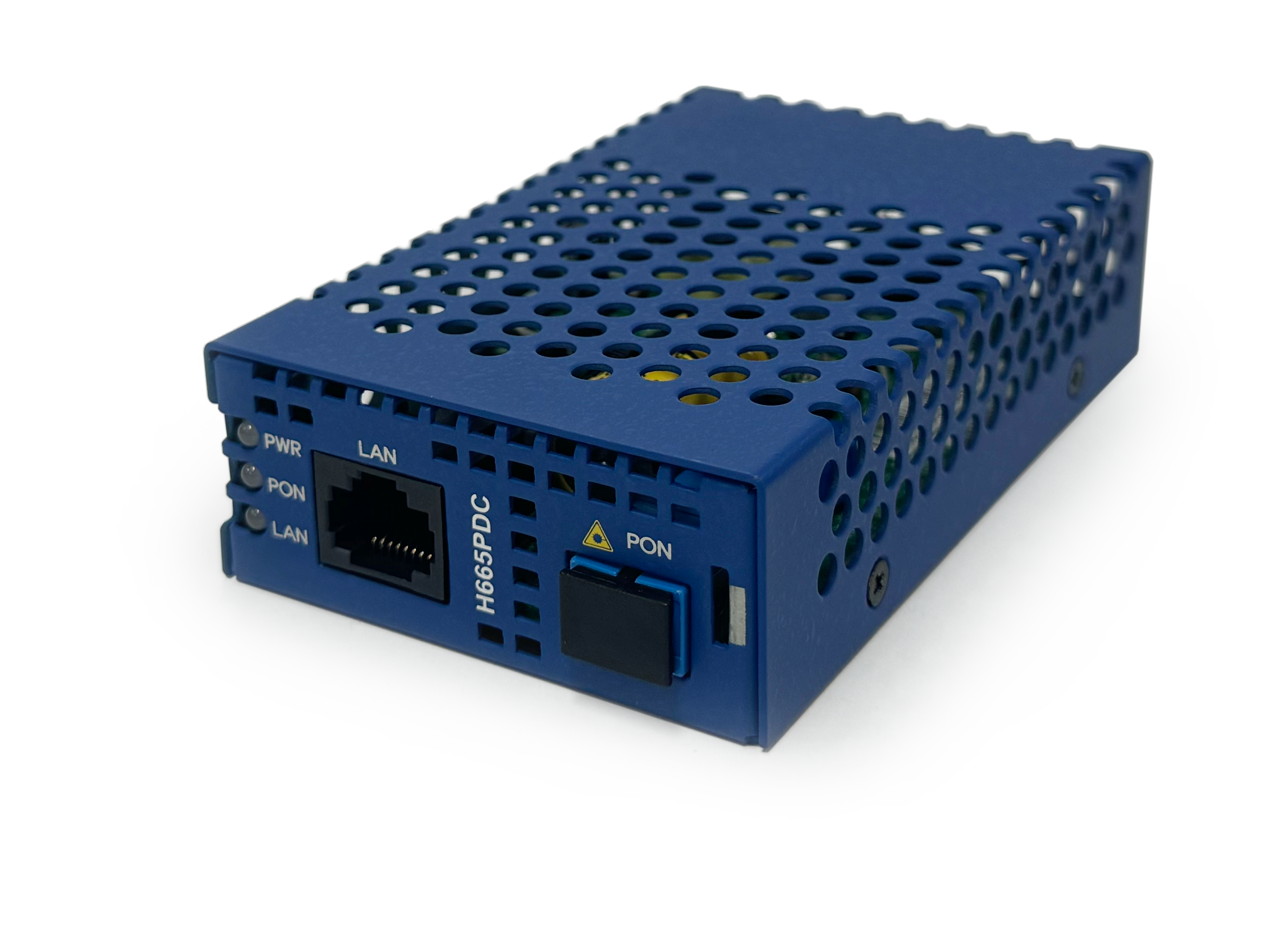

H665PDC 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H665PDC is the GPON optical network terminal (ONT) incorporates interoperability, key customers’ specific requirements and cost-efficiency. Fully com­pliant with ITU-T G.984.x standard, the H665PDC supports data rates of 1.25Gbps upstream and 2.5 Gbps downstream. With DNS leading-edge GPON technology, users can enjoy bandwidth-intensive multimedia services. The H665PDC provides 1 GPON uplink port, 1 GE (100M/1G/2.5GBase-T) port. GPON uplink port has SFF connector type and a high-speed optical access method that has been defined in ITU-T G.9807. The H665PDC is designed to provide a simple and cost-effective GPON network connection and combines the benefits of high-speed GPON technology and enables many interactive multi-media applications such as collaborative computing using fiber network.

Features

• 1-port GPON interface for uplink
• 1-port 100M/1G/2.5GBase-T interface
• ITU-T G.984.x compliant GPON ONT
• GPON data rate of 1.2Gbps/2.5Gbps(US/DS)
• Advanced QoS & Network Management
• Protection of delay-sensitive traffic based on SLA
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support
• Supports PoE PD 802.3af

Specification

Flash Memory:

256MB

SDRAM Memory:

256MB (DDR)

LAN Interface:

1 x 100M/1G/2.5GBase-T (RJ45)

WAN Interface:

1 x GPON (SC/PC)

Operating Temperature:

-20 ~ 60°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

LAN port: PoE PD 802.3af

Dimensions (W x H x D):

28 x 66 x 108 mm

Capabilities

GPON

• ITU-T G.984 compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2 Switch

• Untagged port configuration
• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port

Management

• ITU_T 984.4 compliant with OMCI interface
• ONT service provisioning (on the OLT-side)
