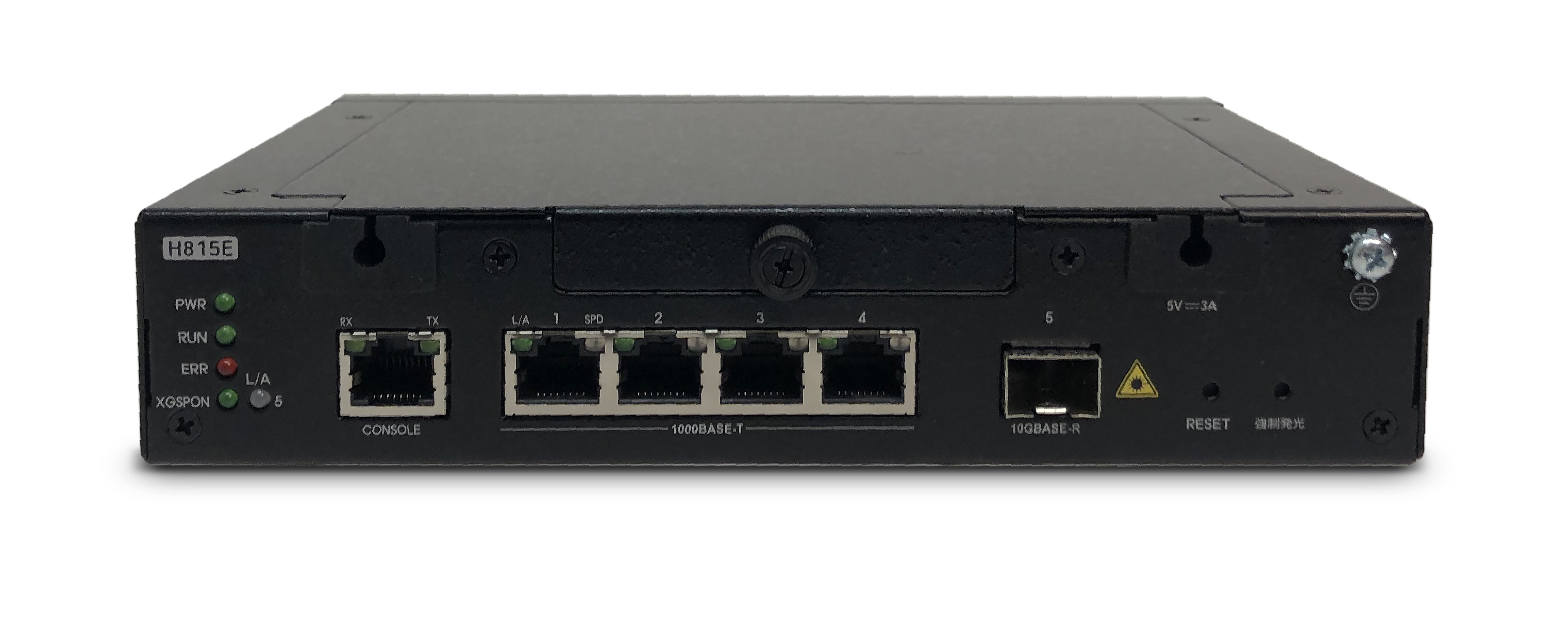

H815E 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H815E is designed to provide a simple and cost-effective XGS-PON network connec-tion and combines the benefits of high-speed XGS-PON technology and enables many in-teractive multimedia applications such as video conferencing and collaborative computing using fiber network. The H815E provides 1 XGS-PON uplink port (Symmetric), and 1 10GE interface (10GBase-R) and 4 1GE interface (10/100/1000Base-T) for UNI. XGS-PON has become increasingly important as the demands on enterprise and smart building networks increase. The H815E incorporates interoperability and key customers’ specif-ic requirements. The H815E is an XGS-PON ONU that can be widely used not only in ordi­nary homes but also in enterprise solutions for business customers.

Features

• 1-port XGS-PON interface
• 4-port 10/100/1000Base-T interfaces
• 1-port 10GBase-R interface
• ITU-T 9807.1 compliant XGS-PON ONU
• XGS-PON Data rate
Symmetric: US 10.3125Gbps and DS 10.3125Gbps
• Advanced QoS & Network Management
• High scalability of full-service solutions
• FTTx application
• Remote Fault monitoring
• Easy and cost-effective setup
• Dying Gasp

Specification

Flash Memory:

128MB

SDRAM Memory:

512MB (DDR)

LAN Interface:

4 x 10/100/1000Base-T (RJ45) 1 x 10GBase-R (SFP+)

WAN Interface:

1 x XGS-PON (SFP+)

Operating Temperature:

0 ~ 50°C

Operating Humidity:

5 ~ 80% (non-condensing)

Power Adaptor:

5VDC 3A

Dimensions (W x H x D):

Dimensions (W x H x D): 200 x 40 x 135 mm

Capabilities

XGSPON

• ITU-T G.9807.1 compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2 Switch

• Untagged port configuration
• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port

Management

• ITU-T 984.4 compliant with OMCI interface
