Overview

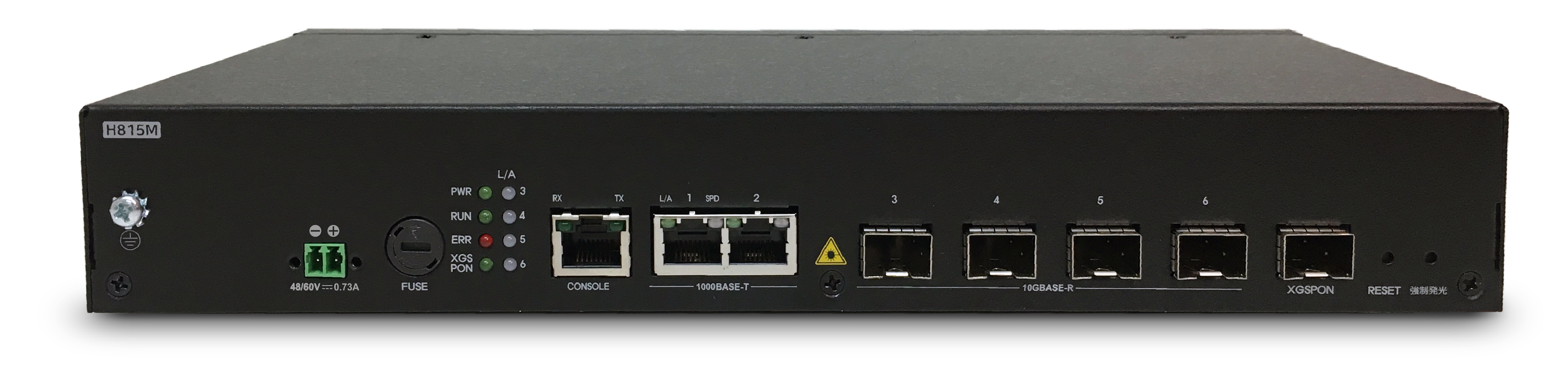

The H815M delivers triple-play services to the subscriber in Fiber-to-the-Home or Fiber-to-the-Premises application. The XGS-PON ONU (Optical Network Unit) H815M incorporates interoperability, key customers’ specific requirements and cost-efficiency. Equipped with ITU-T G.9807 compliant 10G Downstream and 10G Upstream (Symmetric) XGS-PON interface. Compliant with standard OMCI definition, the H815M is manageable at remote side and supports the full range FCAPS functions including supervision, monitoring and maintenance. The H815M provides 1 XGS-PON uplink port (Symmetric), and 4 10GE interface (10GBase-R) and 2 1GE interface (10/100/1000Base-T) for UNI

Features

• 1-port XGS-PON interface
• 4-port 10GBase-R interfaces
• 2-port 10/100/1000GBase-T interface
• ITU-T 9807.1 compliant XGS-PON ONU
• XGS-PON Data rate
Symmetric: US 10.3125Gbps and DS 10.3125Gbps
• Advanced QoS & Network Management
• High scalability of full-service solutions
• FTTx application
• Remote Fault monitoring
• Easy and cost-effective setup
• Dying Gasp

Specification

Flash Memory:

128MB

SDRAM Memory:

512MB (DDR)

LAN Interface:

2 x 10/100/1000Base-T (RJ45) 4 x 10GBase-R (SFP+)

WAN Interface:

1 x XGS-PON (SFP+)

Operating Temperature:

0 ~ 50°C

Operating Humidity:

5 ~ 80% (non-condensing)

Power Adaptor:

48/60VDC 0.73A

Dimensions (W x H x D):

300 x 44 x 145 mm

Capabilities

XGSPON

• ITU-T G.9807.1 compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2 Switch

• Untagged port configuration
• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port

Management

• ITU-T 984.4 compliant with OMCI interface
