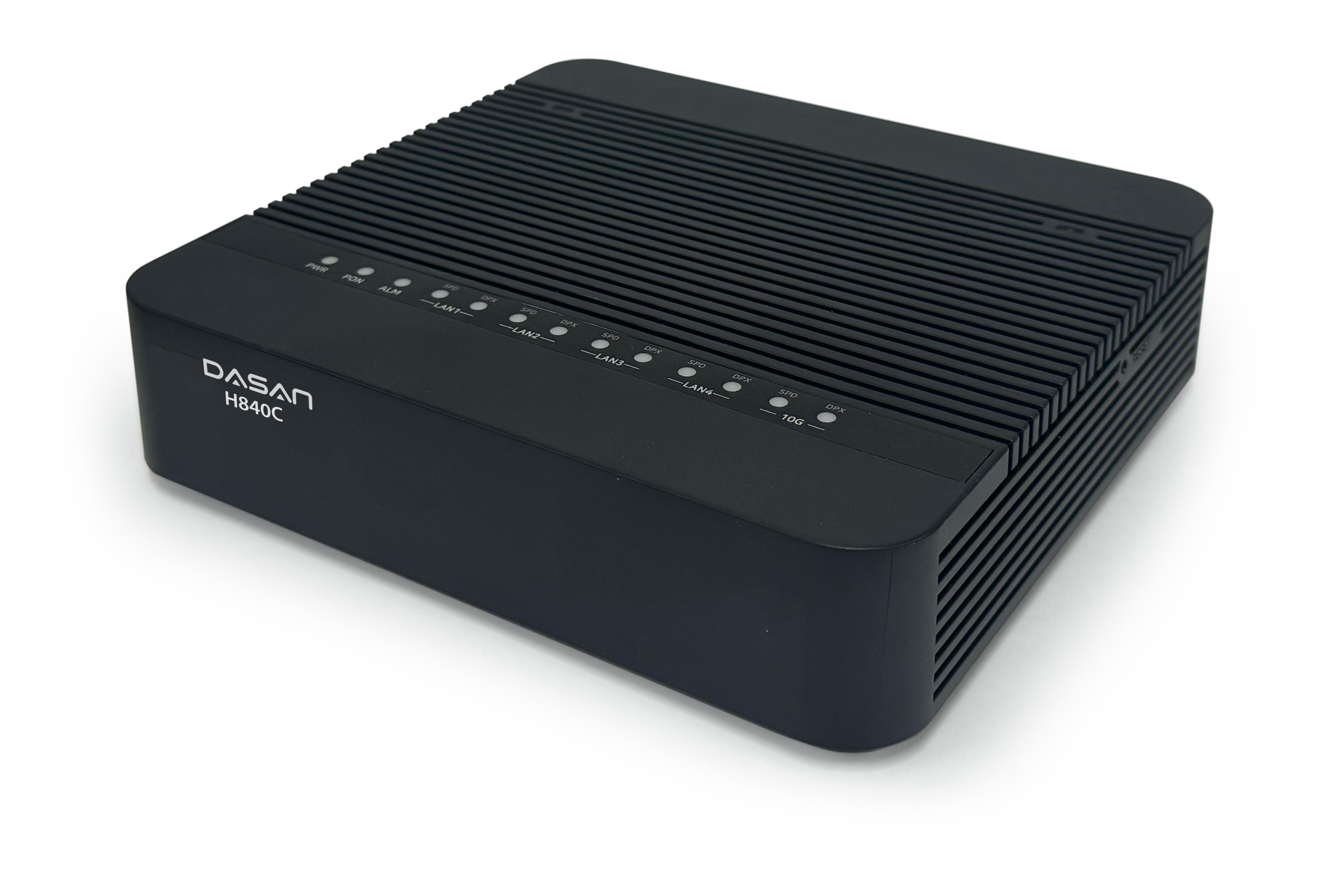

H840C 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H840C optical network terminal (ONT) is targeted for all subscribers requiring multiple POTS and high-speed data interfaces in a cost-effective indoor housing. H840C support a standalone device and with fan-less design. Fully compliant with ITU-T G.9807 standards, H840C supports data rates of 10Gbps upstream and downstream. The ONU is provided with Class N1/N2 type PMD. With DNS leading-edge XGS-PON technology, users can enjoy bandwidth-intensive multimedia services such as real-time audio, and gaming much easier and faster than ever before. The H840C supports Dynamic Bandwidth Allocation (DBA) mechanism in compliance with ITU-T G.9807 with the OLT to optimize upstream bandwidth allocation among ONUs based on the service contracts and supports status reporting DBA in compliance with ITU-T Rec. G.9807.1.

Features

• 1-port XGS-PON interface for uplink
• 1-port N-Base-T(1/2.5/5/10GBase-T) interface
• 4-port 10/100/1000GBase-T interfaces
• ITU-T G.9807 compliant XGS-PON ONT
• XGS-PON data rate of 10Gbps/10Gbps(US/DS)
• Advanced QoS & Network Management
• IEEE802.1D and IEEE802.1Q bridging
• Priority queues and scheduling on Upstream
• Activation with automatic discovered
Serial Number and password
• Dying Gasp support

Specification

Flash Memory:

128MB

SDRAM Memory:

512MB (DDR)

LAN Interface:

1 x N Base-T(1/2.5/5/10Base-T) (RJ45) 4 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x XGS-PON (SC/APC)

Operating Temperature:

0 ~ 45°C

Operating Humidity:

20 ~ 90% (non-condensing)

Power Adaptor:

12VDC 1.5A

Dimensions (W x H x D):

160 x 39.5 x 150 mm

Capabilities

XGSPON

• ITU-T G.9807.1 compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2 Switch

• Untagged port configuration
• Standard Ethernet bridging
• MAC address learning with auto aging

VLAN

• VLAN port filtering
• Destination address port filtering

Multicast

• IGMP snooping

QoS

• HW-based internal IEEE 802.1p (CoS)
• Strict Priority (SP)
• 8 queues per port

Management

• ITU-T 984.4 compliant with OMCI interface
• IEEE802.3x flow control
