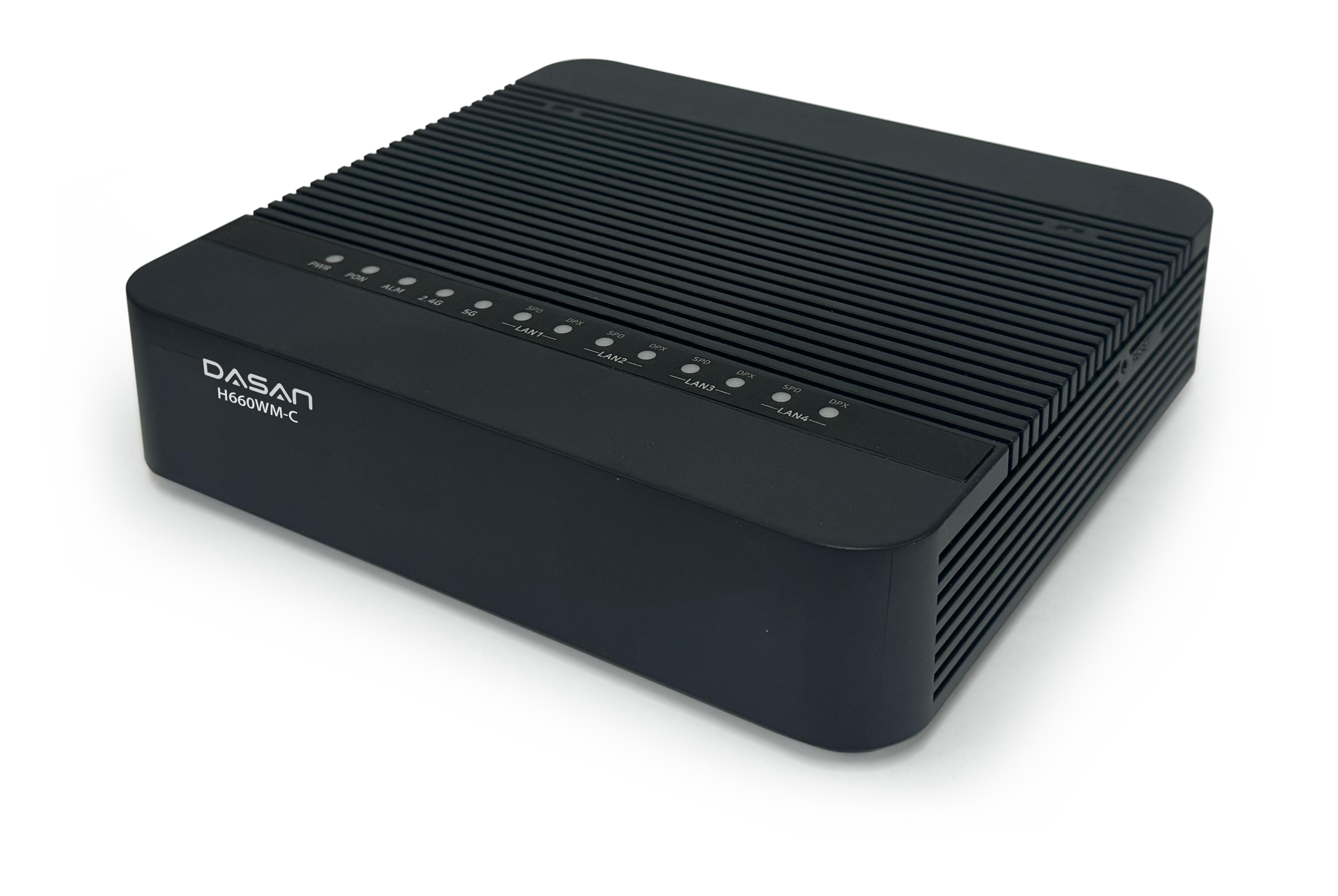

H660WM-C 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H660WM-C optical network terminal (ONT) is targeted for all subscribers requiring high-speed data interfaces in a cost-effective indoor housing. H660WM-C support a standalone device and with fan-less design. H660WM-C supports data rates of 1.25Gbps upstream and 2.5Gbps downstream with fully compliant with ITU-T G.984 standards. The H660WM-C provides 1 GPON uplink port, 4 Gigabit Ethernet (10/100/1000Base-T) ports and Wireless LAN interface that enhance the ability to deliver demanding data/Wi-Fi services. The H660WM-C contains both built-in wire-speed L2 switch and L3 routing gateway with port forwarding, NAT and NAPT address translation, PPPoE client support for high speed Internet service.

Features

• 1-port GPON interface for uplink
• 4-port 10/100/1000Base-T interface
• ITU-T G.984.x compliant GPON ONT
• GPON data rate of 1.2Gbps/2.5Gbps(US/DS)
• Advanced QoS & Network Management
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support
• IEEE802.11b/g/n/ac compliant

Specification

Flash Memory:

128MB

SDRAM Memory:

256MB (DDR)

LAN Interface:

4 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x GPON (SC/PC)

Operating Temperature:

5 ~ 60°C

Operating Humidity:

10 ~ 95% (non-condensing)

Power Adaptor:

12VDC 1.5A

Dimensions (W x H x D):

160 x 39.5 x 150 mm

Capabilities

GPON

• ITU-T G.984.x compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2/L3/L4 Switch

• IEEE802.1D and IEEE802.1Q
• MAC address learning with auto aging
• VLAN/L2/L3 filtering
• NAT/NAPT/Port forwarding

Multicast

• IGMP snooping/IGMP proxy

Wireless LAN

• IEEE802.11b/g/n/ac compliant
• Bandwidth: 2.4GHz, 5GHz

Management

• ITU_T 984.2 compliant OMCI interface
• IEEE802.3x flow control
