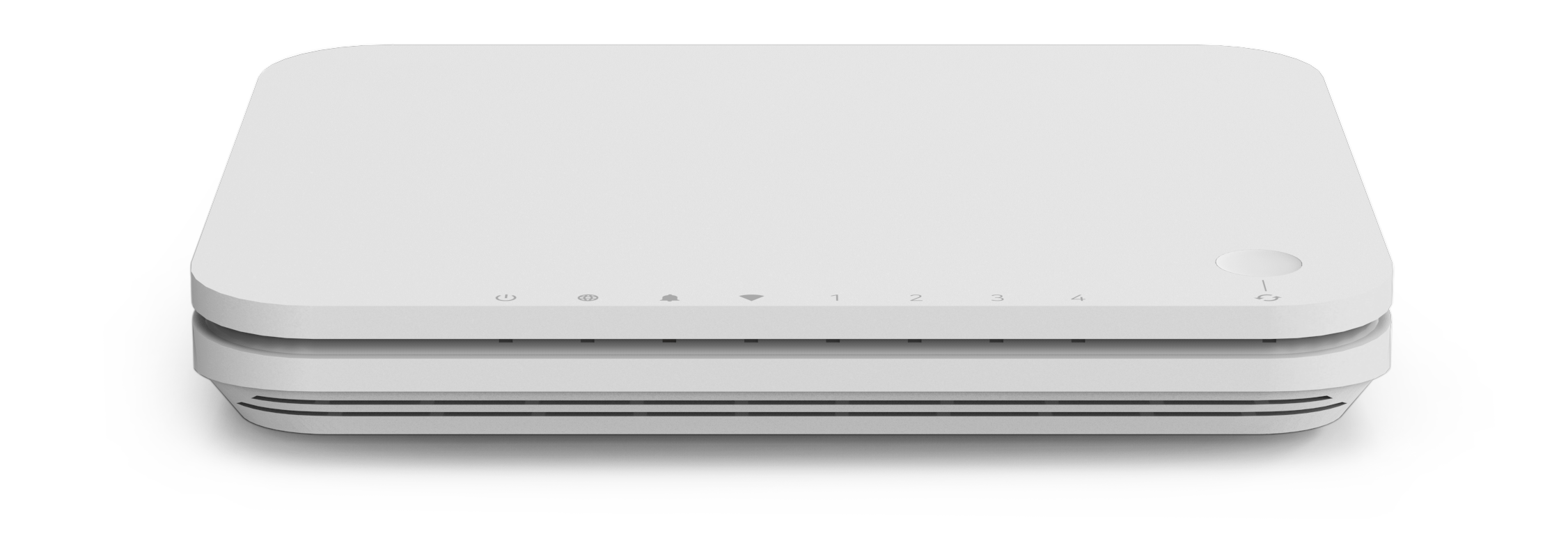

H662GS 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The H662GS provides 1 GPON uplink port 1 Ethernet 10/100Base-TX port 1 Ethernet 10/100/1000Base-T port , 2 USB ports, HDMI, SPDIF, Bluetooth , AV and FXS voice port that enhance the ability to deliver demanding data/Wi-Fi VoIP services. The H662GS uses SIP (Session Initiation Protocol) to terminate VoIP calls so that in home wiring does not change and standard telephone sets may be used. The H662GS is OTT designed upon Android platform to meet requests of telecom operators and subscribers for high quality 4K UHD video experience with the capability of H.264/HEVC decoding upon Android platform. H662GS comes up with Quad Core Cortex A53 1.2 Ghz CPU and Quad Core Mali 450MP2 3D GPU. H662GS includes video encoder which supports H.264 baseline BP level 3.0.

Features

• 1-port GPON interface for uplink
• 1-port 10/100/1000Base-T and 1-port 10/100
Base-T interfaces
• 1-port FXS interface for phone service
• 1-port HDMI and 1-port AV port
• 1-port SPDIF for Digital Audio
• ITU-T G.984.x compliant GPON ONT
• GPON data rate of 1.2Gbps/2.5Gbps(US/DS)
• SIP (RFC3261/3262/3264)
• Android 5.1 Lollipop
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support
• IEEE802.11b/g/n compliant

Specification

Flash Memory:

128MB (GPON)/8GB (IPTV)

SDRAM Memory:

128MB (GPON)/2GB (IPTV)

LAN Interface:

1 x 10/100/1000Base-T (RJ45) 1 x 10/100Base-T (RJ45)

WAN Interface:

1 x GPON (SC/APC)

TEL Interface

1 x FXS interface (RJ11)

IPTV Interface:

1 x HDMI 1 x AV 1 x SPDIF
IR Receiver: 1 x IR

Operating Temperature:

-5 ~ 55°C

Operating Humidity:

0 ~ 90% (non-condensing)

Power Adaptor:

12VDC 1.5A

Dimensions (W x H x D):

200 x 32 x 143 mm

Capabilities

GPON

• ITU-T G.984.x compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2 Switch

• IEEE802.1D and IEEE802.1Q
• MAC address learning with auto aging

Multicast

• IGMP snooping

Wireless LAN

• IEEE802.11b/g/n compliant
• Bandwidth: 2.4GHz

VoIP

• ISIP (RFC3261/3262/3264)
• RTP, RTCP (RFC3550/3551)

Management

• ITU_T 984.2 compliant OMCI interface
• IEEE802.3x flow control
