H646GM-V

GPON/XGSPON

Subscriber Solution
이전으로

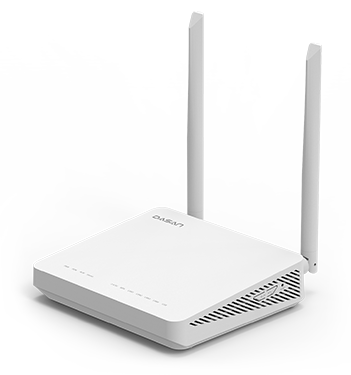

H646GM-V 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

H646GM-V optical network terminal (ONT) is targeted for all subscribers requiring high-speed data interfaces in a cost-effective indoor housing. Fully compliant with ITU-T G.984 standards, the H646GM-V supports data rates of 1.25Gbps upstream and 2.5Gbps downstream. The H646GM-V provides 1 GPON uplink port, 4 Gigabit Ethernet (10/100/1000Base-T) ports, Wireless LAN interface that enhance the ability to deliver demanding data/Wi-Fi services. The H646GM-V contains both built-in wire-speed L2 switch and L3 routing gateway with port forwarding, NAT and NAPT address translation, PPPoE client support for high speed Internet service.

Features

• 1-port GPON interface for uplink
• 4-port 10/100/1000Base-T interface
• ITU-T G.984.x compliant GPON ONT
• GPON data rate of 1.2Gbps/2.5Gbps(US/DS)
• Advanced QoS & Network Management
• Multi-Layer Filtering
• Remote Fault monitoring
• IEEE 802.1D and IEEE 802.1Q bridging
• Dying Gasp support
• IEEE802.11b/g/n/ac compliant
• Wi-Fi Max Thoughput
- 300Mbps in 802.11n
- 866Mbps in 802.11ac

Specification

Flash Memory:

128MB

SDRAM Memory:

256MB (DDR)

LAN Interface:

4 x 10/100/1000Base-T (RJ45)

WAN Interface:

1 x GPON (SC/APC)

USB Interface:

1 x USB 2.0 (Type A)

Antenna:

2Tx2R, MIMO

Operating Temperature:

-5 ~ 55°C

Operating Humidity:

20 ~ 90% (non-condensing)

Power Adaptor:

12VDC 1.0A

Dimensions (W x H x D):

160 x 40 x 140 mm (Antenna excluded) 160 x 196.7 x 140 mm (Antenna included)

Capabilities

GPON

• ITU-T G.984.x compliant
• Forward Error Correction (FEC)
• Multiple T-CONTs/GEM ports per device
• Flexible mapping between GEM port and T-CONT
• Dying gasp

L2/L3/L4 Switch

• IEEE802.1D and IEEE802.1Q
• MAC address learning with auto aging
• VLAN/L2/L3 filtering
• NAT/NAPT/Port forwarding

Multicast

• IGMP snooping/IGMP proxy

Wireless LAN

• IEEE802.11b/g/n/ac compliant
• Bandwidth: 2.4GHz, 5GHz• 20MHz, 40MHz, 80MHz (@ 5GHz)
• WPS function

Management

• ITU_T 984.2 compliant OMCI interface
• IEEE802.3x flow control
