C1216RO

Macro Fronthaul

Mobile Solution
이전으로

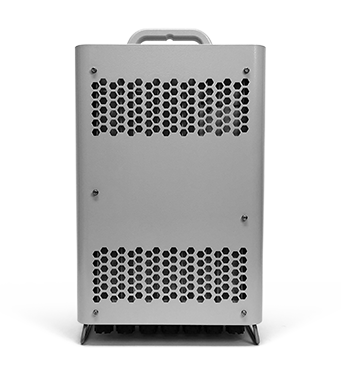

C1216RO 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The C1216RO is an outdoor type TSN (Time-Sensitive Networking) switch which capable of accommodating 4G, 5G and Wi-Fi services simultaneously on a single platform. With the various types of service interfaces such as CPRI, eCPRI and 25Gbps Ethernet, the C1216RO can aggregate traffics like 5G RU (Radio Unit), 5G mm Wave (millimeter Wave), 4G RU, Small Cell and Wi-Fi AP (Access Point). Then C1216RO transmits traffics to 5G DU (Distribution Unit), 5G CU (Central Unit), 4G DU via 25/50/100Gbps Ethernet uplink interface. With high-precision timing, TSN offers synchronization to the cell site remote radio, while maintaining low latency variation for aggregated 4G and 5G traffic by preempting other packets.

Features

• Flash 8MB NOR (Boot) & 512MB NAND (NOS)
• SDRAM 4GB DDR4 with ECC
• Support 10/25/50/100G Ethernet interfaces
• Support CPRI interfaces
• IEEE 1588v2 Clock Synchronization
• Synchronization Ethernet (SyncE)
• Management via CLI or SNMPv2/v3
• User password protected system management
• Data secured through SSH
• Remote network management
• L2 Switching and Ethernet bridging

Specification

Flash Memory:

8MB (Boot) + 512MB (NOS)

SDRAM Memory:

4G DDR4

Interface:

25/50GBase-R - 2 x 25/50GBase-R (port 1,3 with SFP28) - 4 x 25/50GBase-R (port 1,2,3,4 with DSFP) 9 x 25GBase-R (SFP28) 2 x 50/100GBase-R (QSFP28) 3 x CPRI (SFP+)

Operating Temperature:

-40 ~ 50°C

Operating Humidity:

10 ~ 80% (non-condensing)

Power Voltage:

-37 to -57 VDC, Nominal -48 VDC

Power Consumption:

130W

Dimensions (W x H x D):

300 x 148 x 400(*448) mm * Handle included

Capabilities

Layer 2

• Standard Ethernet bridging
• IPv6• A A load sharing (LACP)
• VLAN (802.1q QinQ, 8 02.1p)
• TSN (802.1AS, 802.1Q, 802.1Qbv and Other related)

Clock Synchronization

• GPS receiver
• 1588 v2 GM
• 1588 v2 BC/TC
• SynE

TWAMP

• TWAMP Reflector

QoS

• Scheduling
• Classification and queuing

Security

• MAC Sec
• Port Based Authentication

Management

• SNMP v2/v3
• Y.1731/Y.1564
