Overview

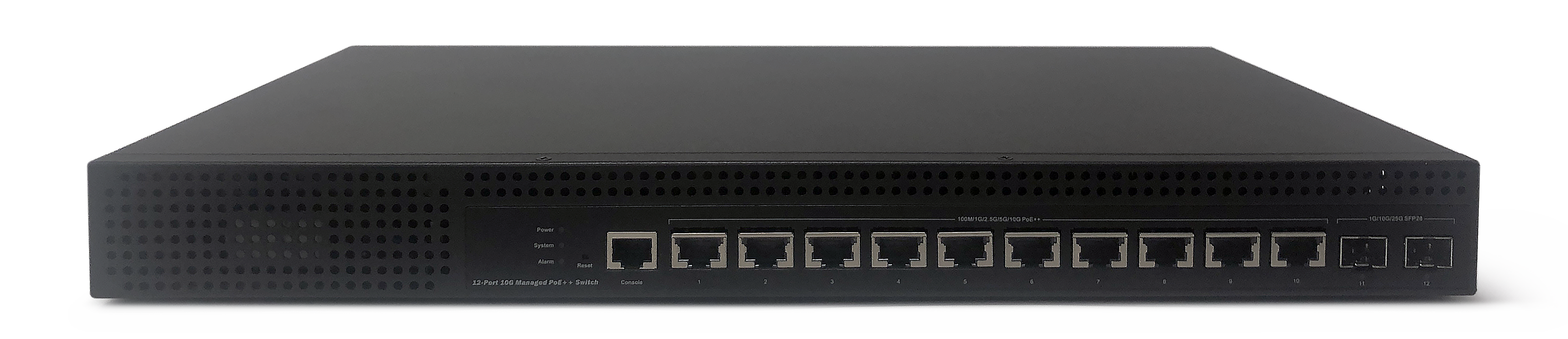

The E3212XP switch is next-generation managed (100M/ 1G/2.5G/5G/10G) Multi-gigabit PoE++ switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features. The E3212XP delivers 10 (100M/1G/2.5G/5G/10G Multi-Gig) RJ45 and 2 (1G/10G/25G) SFP28 ports and RJ45 Console port. E3212XP provides high HW performance for aggregation/access network applications. The E3212XP supports 10 PoE++ (PoE output max. 90W per port). This switch provides high HW performance and environment flexibility for SMBs and Enterprises.

Features

• Max. 300Gbps switching capacity base on
I/O full duplex
• Fully L2 features provide easier manageability,
security and QoS
• IEEE 1588v2 PTP
• ITU-T G.8031 Ethernet Linear Protection Switching
(EPS)
• ITU-T G.8032 Ethernet Ring Protection Switching
(ERPS)
• PoE Port configuration and scheduling
• 802.3af/802.3at/802.3bt high power PoE++ standard
• Management via CLI or SNMPv1/v2/v3 and RMON

Specification

Interface:

10 x 1/2.5/5/10GBase-T (RJ45)

Uplink Interface

2 x 1/10/25GBase-R (SFP+ or SFP28)

Operating Temperature:

0 ~ 40°C

Operating Humidity:

10 ~ 90% (non-condensing)

Power:

100-240 VAC

PoE:

900W

Power Consumption:

1000W

Dimensions (W x H x D):

440 x 44 x 260 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/Subnet/Protocol-based VLAN
• Spanning tree (STP)
• 802.3ad Link Aggregation

Layer 2 advanced

• IPv4 Static routing
• IPv6 Static routing

PoE Capabilities

• Port Configuration
• PoE Scheduling
• Power Delay

Clock Synchronization

• IEEE1588v2 (TC/BC)
• Synchronous Ethernet

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3 and RMON
