Overview

support the packet-based transport technology that is based upon circuit-based transport networking. It has been designed for mobile fronthaul networks with demanding subscriber bandwidth requirements and rigid quality-ofservice and security needs. The C2150 can be used for a variety of new, revenuegenerating applications, for example as L2 Ethernet LAN switches in high rise buildings or as datacenter application and aggregation switches. The C2150 offers clock synchronization services, allowing for mobile clocking synchronization from the core of the network.

Features

• Support 10/25G Ethernet interfaces
• IEEE 1588v2 Clock Synchronization
• Synchronization Ethernet (SyncE)
• Management via CLI or SNMPv2/v3
• User password protected system management
• Data secured through SSH
• Remote network management
• L2 Switching and Ethernet bridging

Specification

Interface:

16 x 10/25GBase-R (SFP+/SFP28)

Clock Interface:

1 x 1PPS (SMA)
1 x 10MHz (SMA)
1 x ToD (RJ45)
1 x GNSS (Optional, SMA)

Operating Temperature:

-20 ~ 60°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

DC 48 VDC
AC: 100-240 VAC

Power Consumption:

137.1W (PSU DC) 142.7W (PSU AC)

Dimensions (W x H x D):

444 x 44 x 220 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• IPv6
• LACP
• VLAN (802.1q QinQ, 8 02.1p)
• L2 Multicast

Clock Synchronization

• IEEE 1588v2
• Integrated Gand Master with internal GNSS receiver
• Class C T-BC/TC
• SynE

TWAMP

• TWAMP Reflector

QoS

• Scheduling
• Classification and queuing

Security

• Out-of-band management
• SSH

Management

• SNMP v1/v2/v3
• Serial/Telnet (CLI)
• RMON

Solutions · Products

Company Introduce

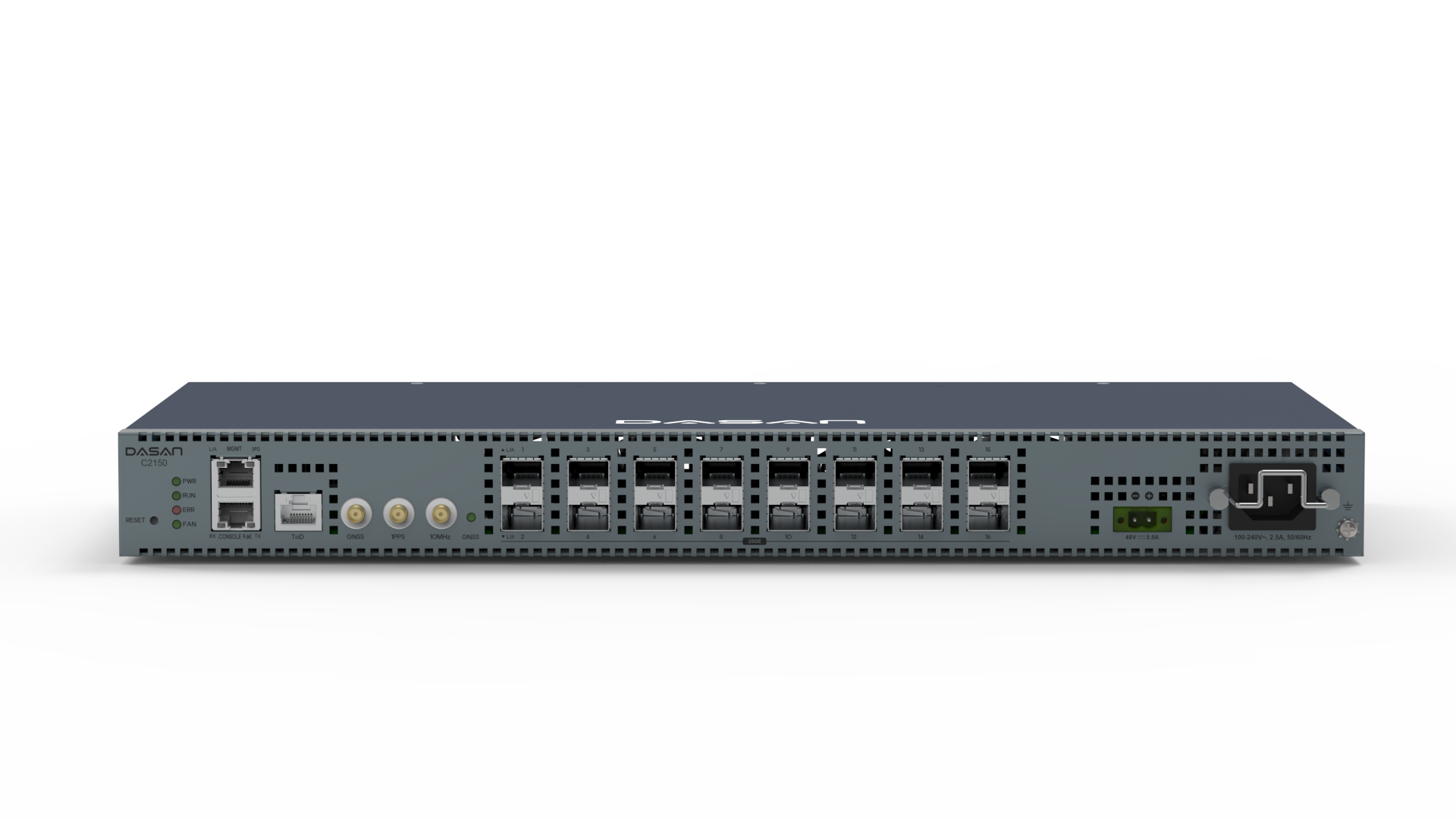

C2150
