V3024V

L2 Switch

Broadband Solution
이전으로

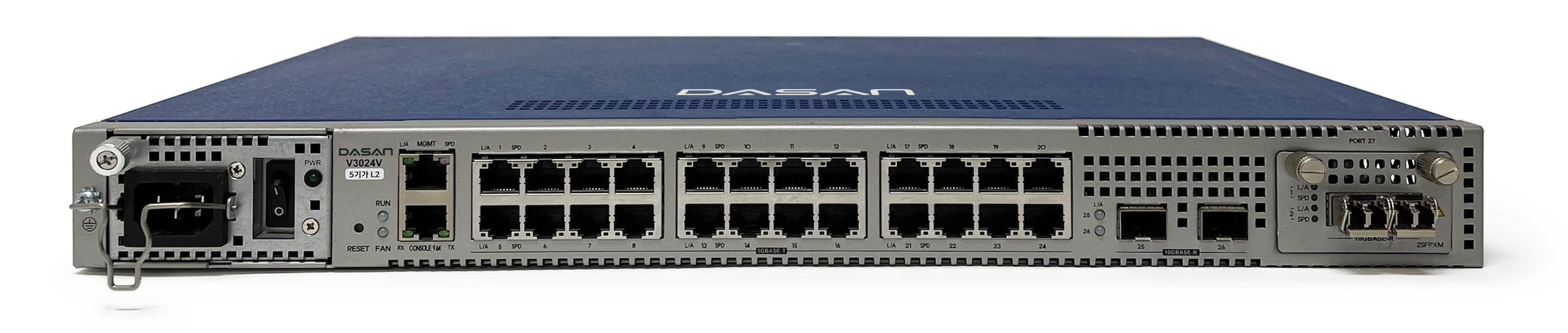

V3024V 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V3024V is a cost effective single-board 5 Gigabit Ethernet switch. It has been designed as ultra-compact customer premise equipment with the reliable Layer 2 functionalities. V3024V provides 24-port of 5/2.5/1GBase-T/100Base­TX interfaces which support with the RJ45 connectors and 3-port uplink interface. It also has a non-blocking architecture and interfaces providing wire-speed and full-duplex packet traffic on all ports. For the uplink interface unit, it supports 10GBase-R (SFP+), 10G-EPON (SFP+) and EPON (SC) to provide a wider bandwidth and a longer transmission distance. The V3024V can be used for various application scenarios as L2 GE switch as well as PON L2 Gigabit Multi Dwelling Unit (MDU). As you know, FTTx services requires a very cost effective PON MDU device that is highly integrated and provides all the services need for deployment of triple-play services to the home.

Features

• 320Gbps switching capacity
• 238Mpps Throughput
• 24-port 5/2.5/1GBase-T/100Base-TX Ethernet
• 2-port 10GBase-R (SFP+) for uplink interface
• 1-optional uplink module
- 2-port 10GBase-R (SFP+)
- 1-port EPON (SC)
- 1-port 10G-EPON (SFP+)
• Extensive Layer2 access switch functions
with non-blocking
• Compact size suitable for indoor and outdoor
deployments
• Management via CLI or SNMPv1/v2/v3

Specification

Service Interface:

24 x 5/2.5/1GBase-T/ 100Base-TX (RJ45)

Uplink Interface:

Fixed 2-port 10GBase-R (SFP+) 1-slot Uplink Module
- 2-port 10GBase-R (SFP+)
- 1-port 10G-EPON (SFP+)
- 1-port EPON (SC)

Operating Temperature:

-20 ~ 60°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

100 ~240 VAC

Power Consumption:

Max. 118 W

Dimensions (W x H x D):

440 x 44 x 250 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/Subnet/Protocol based VLAN
• STP/RSTP/MSTP/PVSTP/PVRSTP
• 802.3ad Link Aggregation
• Port mirroring

Multicast

• IGMPv1/v2/v3
• IGMP snooping
• Multicast VLAN Registration (MVR)

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3

QoS

• Traffic scheduling (SP, WRR, DRR)
• 8 Queues per port

Security

• SSHv1/v2• RADIUS, TACACS+ authentication
• Ethernet type/L4-based ACL (Access Control List)
