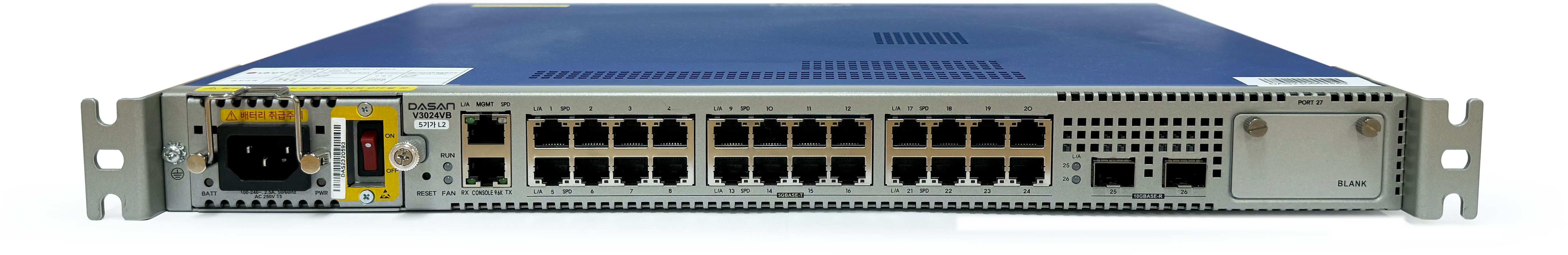

V3024VB

The V3024VB is a cost effective single-board 5 Gigabit Ethernet switch. It has been designed as ultra-compact customer premise equipment with the reliable Layer 2 functionalities. V3024VB provides 24-port of 5/2.5/1GBase-T/100Base­TX interfaces which support with the RJ45 connectors and 3-port uplink interface. It also has a non-blocking architecture and interfaces providing wire-speed and full-duplex packet traffic on all ports. For the uplink interface unit, it supports 10GBase-R (SFP+), 10G-EPON (SFP+) and EPON (SC) to provide a wider bandwidth and a longer transmission distance. The PSU module for V3024VB can be installed either with a built-in battery or without a built-in battery.

• 320Gbps switching capacity
• 238Mpps Throughput
• 24-port 5/2.5/1GBase-T/100Base-TX Ethernet
• 2-port 10GBase-R (SFP+) for uplink interface
• 1-optional uplink module
- 2-port 10GBase-R (SFP+)
- 1-port EPON (SC)
- 1-port 10G-EPON (SFP+)
• Extensive Layer2 access switch functions
with non-blocking
• Compact size suitable for indoor and outdoor
deployments
• Management via CLI or SNMPv1/v2/v3
