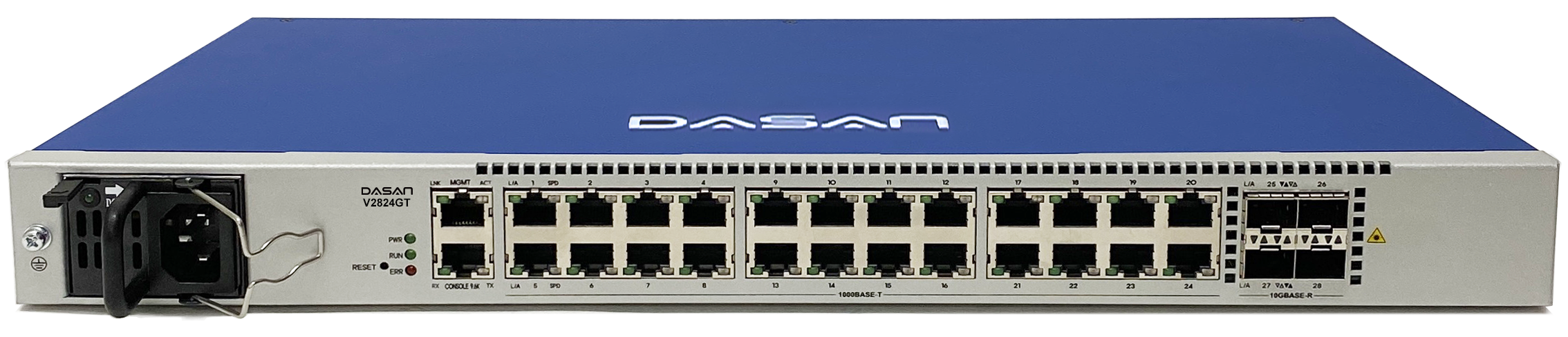

V2724GT 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V2724GT is a cost effective single-board Gigabit Ethernet switch. It has been designed as ultra-compact customer premise equipment with the reliable Layer 2 functionalities. The V2724GT is comprised of 24-port 10/100/1000Base-T(RJ45) and 4-port 10GBase-R(SFP /SFP+). The MGMT and console interface is also located on the front panel with embedded LED for LNK/ACT and TX/RX indication respectively. They are for use of equipment management via remote access or CLI. The V2724GT provides a single AC/DC power connector input and its switch on the front panel. This system supports PSU (AC/DC) and fixed FANs for stable service delivery.

Features

• 128Gbps switching capacity
• 95Mpps Throughput
• 24-port 1 Gibabit Ethernet
• 4-port 10 Gigabit Ethernet
• Extensive Layer2 access switch functions
with non-blocking
• Compact 1 RU chassis suitable for indoor
and outdoor deployments, with AC & DC variants
• Management via CLI or SNMPv2/v3,
plus NETCONF/YANG enabled for SDN network

Specification

Flash Memory:

512MB

SDRAM Memory:

512MB

Interface:

24 x 10/100/1000Base-T (RJ45) 4 x 10GBase-R (SFP/SFP+)

Operating Temperature:

-20 ~ 60°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

0 ~ 90% (non-condensing)

Power:

DC 48VDC
AC: 100~230VAC

Power Consumption:

27W

Dimensions (W x H x D):

440 x 44 x 240 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• 16K MAC addresses in MAC Table
• IEEE 802.1Q tagged frame with 2K VLANs
• 1.5MB packet buffer size (internal)
• User port isolation
• Jumbo frames with up to 9KB
• Access loop identification

Security

• Broadcast/Multicast storm control
• RADIUS, TACAS+ 802.1x authentication

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3

QoS

• Traffic scheduling (SP, WRR, DRR)
• CoS, DSCP/802.1p priority
