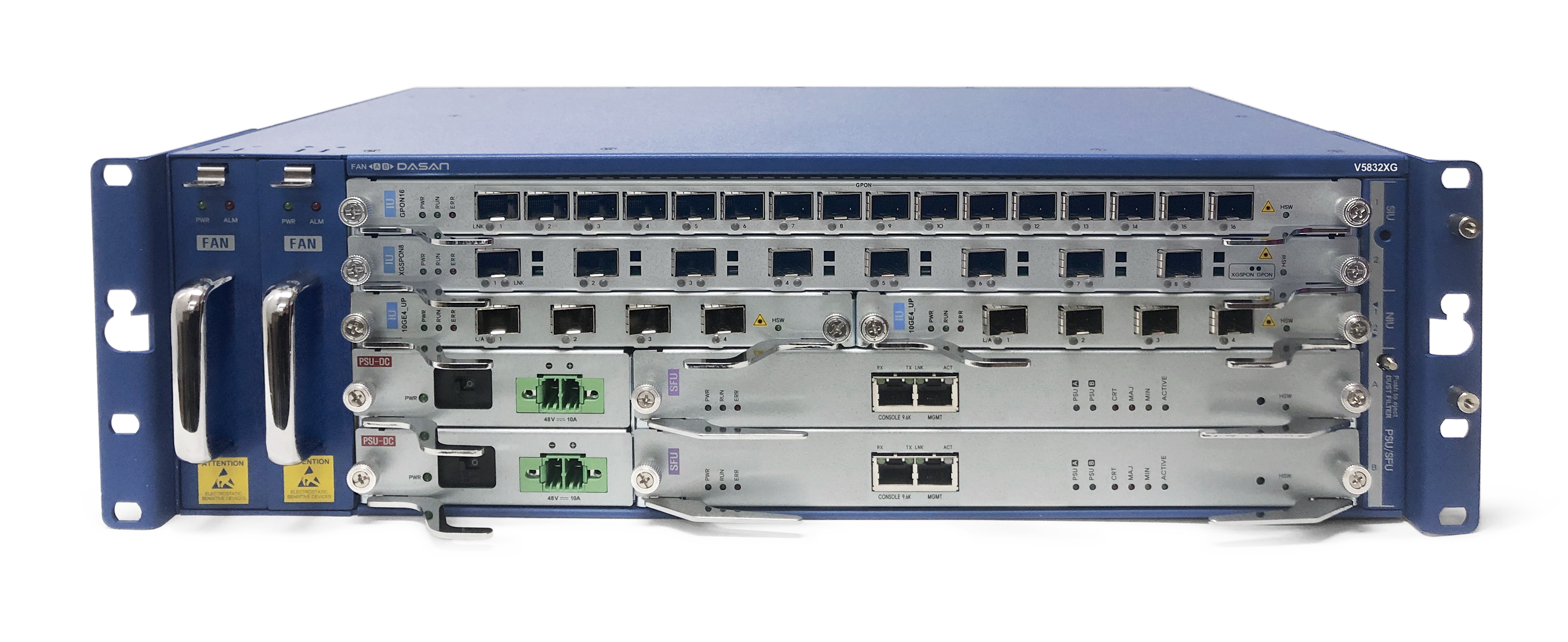

V5832XG 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V5832XG is a cost-effective chassis based PON Optical Line Termination (OLT). Based on the latest IEEE standard, the V5832XG has been specifically designed to fulfill a function within mobile backhaul networks. The V5832XG can be used for a variety of new, revenue-generating applications, for example as L2/L3 Ethernet LAN switches in high rise buildings or as datacenter application and aggregation switches. Additionally, the V5832XG system helps to enhance network efficiency through offering dedicated L3 functionality. The V5832XG introduces a point-to-multipoint concept with the PON technology, which enables a cost-effective FTTx service. The reason why PON is considered as a cost-effective solution is its usage of a passive splitter rather than an active switching system.

Features

• 16-port GPON interfaces per slot
• 8-port XGS-PON interfaces per slot
• 8-port 10GE interfaces per slot
• 800Gbps switching capacity
• 595Mpps throughput
• Hot swappable for all plug-in units
• XGS-PON ODN class N1 compliant with ITU-T
G.9807.1
• ITU-T G.984.4 ONT Management & Control Interface
(OMCI)
• GPON SFP B+ compliant with ITU-T G.984.2
• GPON SFP C+ compliant with ITU-T G.984.2
• Supports DDM (Digital Diagnostics Monitoring)

Specification

Flash Memory:

8MB(Boot) + 512MB(NOS)

SDRAM Memory:

4GB (DDR4 with ECC)

Interface:

2 Slot for SIU
- IU_GPON16 for GPON(SFP)
- IU_XGSPON8 for XGS-PON (SFP)
Uplink Interface:
2 Slot for NIU
- IU_10GE4_UP for 10GE(SFP+)

Operating Temperature:

-10 ~ 50°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

DC -48VDC, AC: 220VAC

Power Consumption:

265W (PSU DC) 310W (PSU AC)

Dimensions (W x H x D):

482.6 x 133 x 280 mm (3RU, Wing Bracket included)

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/subnet-based VLAN
• Spanning tree: STP, RSTP, MSTP
• 802.3ad link aggregation

Layer 3

• IPv4 routing / IPv6 routing
• OSPFv2, BGPv4

Multicast

• IGMPv1/v2/v3
• IGMP snooping

GPON XGSPON

• XGS-PON ODN class N1 compliant with ITU-T G.9807.1
• ITU-T G.984.4 ONT Management & Control Interface (OMCI)
• Supports DDM (Digital Diagnostics Monitoring)

Management

• Serial / SSH / Telnet (CLI)
• SNMPv1/v2/v3, RMON

Security

• 802.1x MAC/port based authentication
• Storm control for broadcast, multicast and unknown unicast packets
• SSH v2•RADIUS, TACACS+
