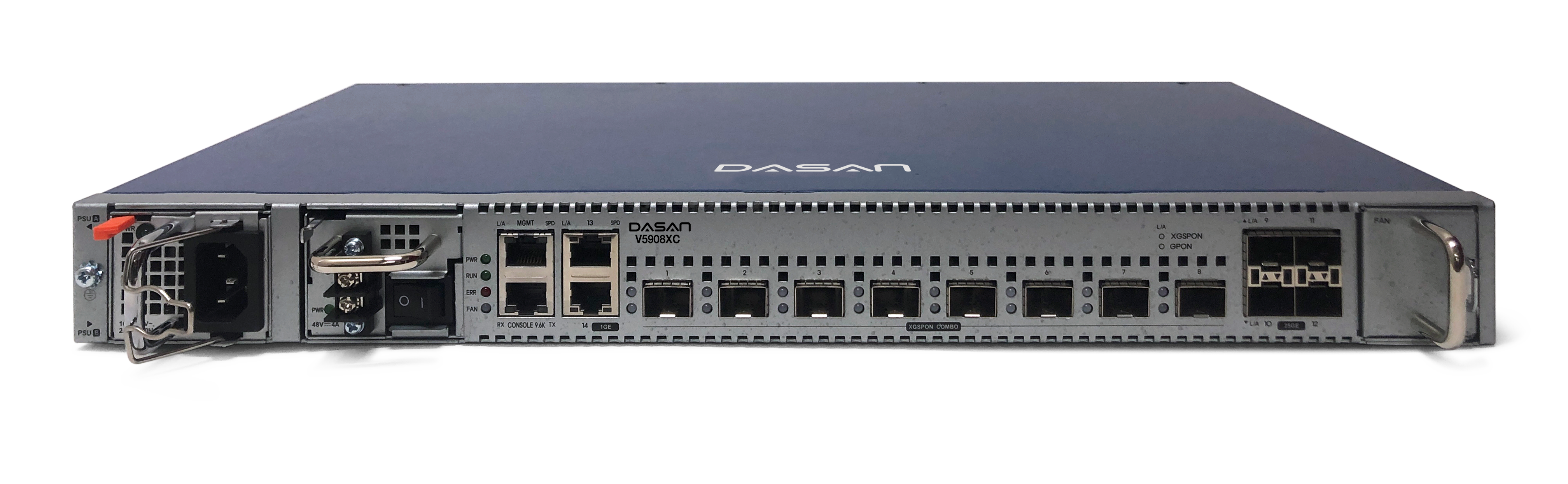

V5908XC 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The XGS-PON technology adds new features and function­ality targeted at improving performance and interoper­ability, and adds support for new applications, services, and deployment scenarios. Among these changes are improvements in data rate and reach performance, diagnostics, and stand-by mode, to name a few. The V5908XC introduces a point-to-multipoint concept with the XGS-PON technology, which enables a cost-effective FTTx service. The reason why XGS-PON is considered as a cost effective solution is its usage of a passive splitter rather than an active switching system. The V5908XC is comprised of 8-port XGS-PON/GPON combo interface for service interface and fixed 4-port 25GE interface and 2-port 1GE for uplink on the front panel. It offers usable interface to make up diversity network services. Therefore, depending on customer requirements, it can be configured with several Ethernet configurations.

Features

• 394Gbps switching capacity
• 293Mpps throughput
• Redundant dual power supply unit
• 8-port XGS-PON/GPON combo interfaces
• Fixed 4-port 25GE and 2-port 1GE interfaces
• XGS-PON ODN class N1 compliant with ITU-T
G.9807.1
• ITU-T G.988 OMCI (ONT Management & Control
Interface)
• GPON SFP B+, C+ compliant with ITU-T G.984.2
• Max. 512 ONT (GPON 1:64 or XGS-PON 1:128)
DASAN Network

Specification

Flash Memory:

1GB

SDRAM Memory:

1GB (DDR3)

Interface:

8 x XGS-PON/GPON combo (SFP+/SFP)
4 x 10/25GBase-R (SFP28)
2 x 10/100/1000Base-T (RJ45)

Operating Temperature:

-20 ~ 60°C

Storage Temperature:

-20 ~ 70°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

DC 48VDC
AC: 100-240 VAC

Power Consumption:

Max. 103W (PSU DC) Max. 101.3W (PSU AC)

Dimensions (W x H x D):

440 x 44 x 250 mm (1RU)

Capabilities

Layer 2

• Standard Ethernet bridging
• 4K active VLANs for 802.1q tagged frame
• Link aggregation (static, LACP)

QoS

• Traffic Scheduling (SP, WRR, DRR)
• 8 queues per port

Multicast

• IGMPv1/v2/v3
• IGMP snooping/Proxy

GPON XGS-PON

• ITU-T G.988 OMCI (ONT Management & Control Interface)
• XGS-PON ODN Class N1 compliant with ITU-T G.9807.1
• GPON SFP B+, C+ compliant with ITU-T G.984.2

Management

• Serial / SSH / Telnet (CLI)
• SNMPv1/v2/v3, RMON

Security

• 802.1x authentication
• Storm Control (Broadcast/Multicast /DLF)
