Overview

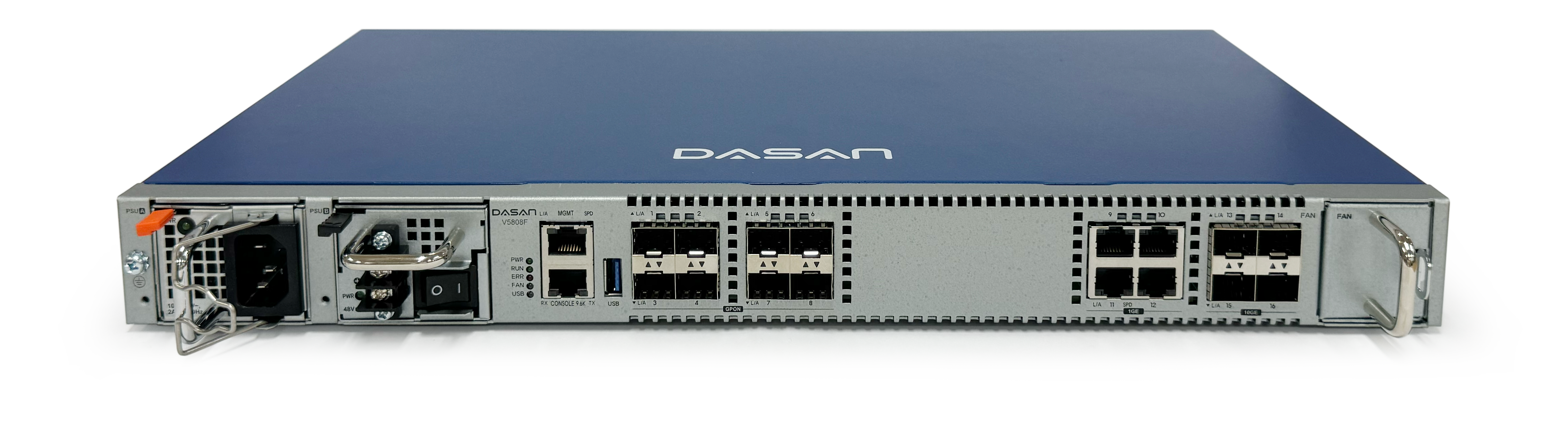

V5808F can be used as a GPON Optical Line Termination (OLT) supporting 8-Port GPON interfaces as well as L3 switch of supporting 4-Port 10GBase-R (SFP+) and 4-Port 10/100/1000Base-T(RJ45) service. It terminates the traffic coming from the subscriber lines and consolidates it on one or more Gigabit Ethernet interfaces towards the metropolitan area. The GPON technology adds new features and functionality targeted at improving performance and in-teroperability, and adds support for new applications, services, and deployment scenarios. Among these changes are improvements in data rate and reach performance, diagnostics, and stand -by mode, to name a few.

Features

• 128Gbps switching capacity
• 95.24Mpps Throughput
• 8-port GPON
• 4-port 10 Gigabit Ethernet
• 4-port 1 Gigabit Ethernet
• ITU-T G.984.4 ONT Management & Control Interface
(OMCI)
• ITU-T G.984.3 amd2
• Management via CLI or SNMPv1/v2/v3
• Static IPv4/IPv6 Routing
• Link Aggregation (Static and LACP)

Specification

Flash Memory:

512MB

SDRAM Memory:

2GB

Interface:

8 x GPON (SFP)
4 x 10GBase-R (SFP+)
4 x 10/100/1000Base-T (RJ45)

Operating Temperature:

-20 ~ 60°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

5 ~ 95% (non-condensing)

Power:

DC 48/60VDC
AC: 100~240VAC

Power Consumption:

48.2W (DC) 50.5W (AC)

Dimensions (W x H x D):

440 x 44 x 250 mm

Capabilities

Layer 2

• Standard Ethernet bridging
• IEEE 802.1Q tagged frame with 4K VLANs
• Jumbo frames with up to 9KB
• Link Aggregation (Static and LACP)

GPON

• Supports ITU-T G.984.4 OMCI
• Supports ITU-T G.984.3. amd2

Security

• 802.1x MAC/port based authentication
• Storm control for broadcast, multicast and unknown unicast packets

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3

QoS

• Traffic scheduling (SP, WRR, DRR)
• CoS, DSCP/802.1p priority
