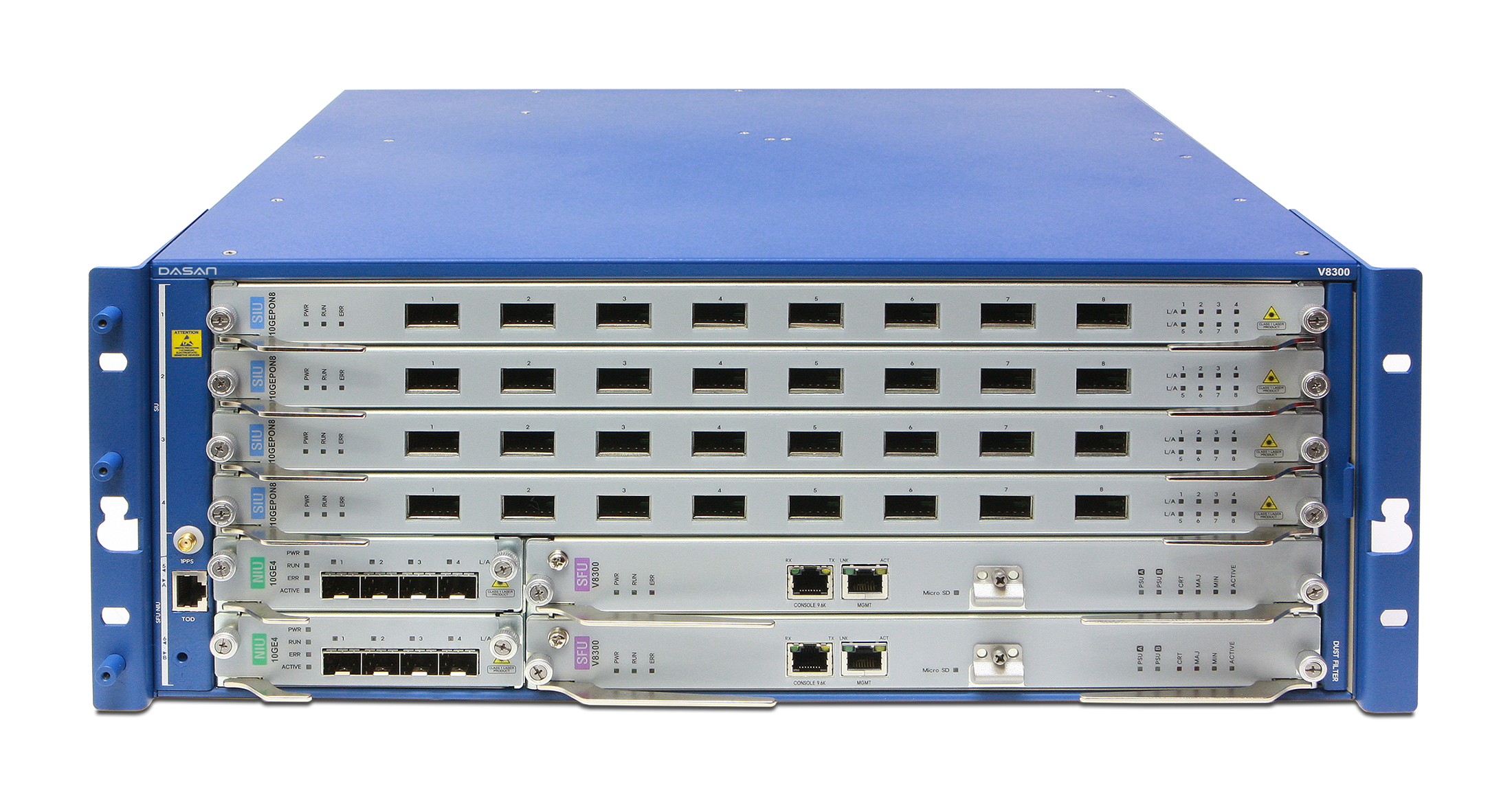

V8300 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V8300 is EPON/10G-EPON service designed to handle demanding network requirements for Carrier Level or Enterprise Level as low latency. It enables 10G-EPON to be deployed in the premier area like the building, bank, securities and so on, which can significantly improve the high bandwidth and stability as level as Carrier. Moreover it does 8 10G-EPON to be located on the Carrier Office, for reducing CAPEX and OPEX as significantly. The V8300 offers Service Interface Unit(SIU) 4 Slots for 8 10G-EPON and 2 Slots for Network Interface Unit(NIU) 4 10GE. All interfaces ports allow the maximum flexibility. V8300 provides high-bandwidth switching, filtering, and traffic management without delaying data, and large data center grade buffers to keep traffic moving.

Features

• 1440Gbps switching capacity
• 64 Ports 10G-EPON OLT solution
• Support full Redundancy(PON, SFU, PWR, FAN)
• Ultra low latency
• Scalability and line rate performance
• Outstanding scalability and line rate performance
• Real-time network traffic monitoring and analysis
• Management via Dasan Management System
• SNMPv2/v3 with RMON, and Alarming
• L2/L3/L4 H/W based ACL
• User password protected system management
• Clock : SyncE, IEEE1588, 802.1AS

Specification

Flash Memory:

8MB(Boot) + 128MB(NOS)

SDRAM Memory:

4GB (DDR3)

Interface:

4 Slot for SIU
- SIU_10GEPON8 (XFP)
- SIU_10GEPON16 (SFP+)

Uplink Interface:
2 Slot for NIU
- NIU_10GE4 (SFP+)

Operating Temperature:

0 ~ 40°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

20 ~ 80% (non-condensing)

Power:

DC -48VDC
AC: 100VAC

Power Consumption:

Max. 656W (DC)/1127.7W (DC2) Max. 755W (AC) /1287.7W (AC2)

Dimensions (W x H x D):

482.6 x 177 x 445 mm (Wing Bracket included)

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/subnet/protocol-based VLAN
• Spanning tree: STP, RSTP, MSTP
• 802.3ad link aggregation

Layer 3

• IPv4 routing / IPv6 routing
• RIPv1/v2, OSPFv2, BGPv4

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM
• IGMP snooping

EPON 10G-EPON

• Fully compliant with IEEE 802.3ah
• DBA based on SLA
• Type-B redundancy
• Remote ONT/ONU management
• Deployments of FTTH/FTTB environments

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3, RMON

QoS

• Traffic scheduling (SP, WRR, DRR)
• 8 queues per port
• Advanced traffic management - metering, egress shaping
