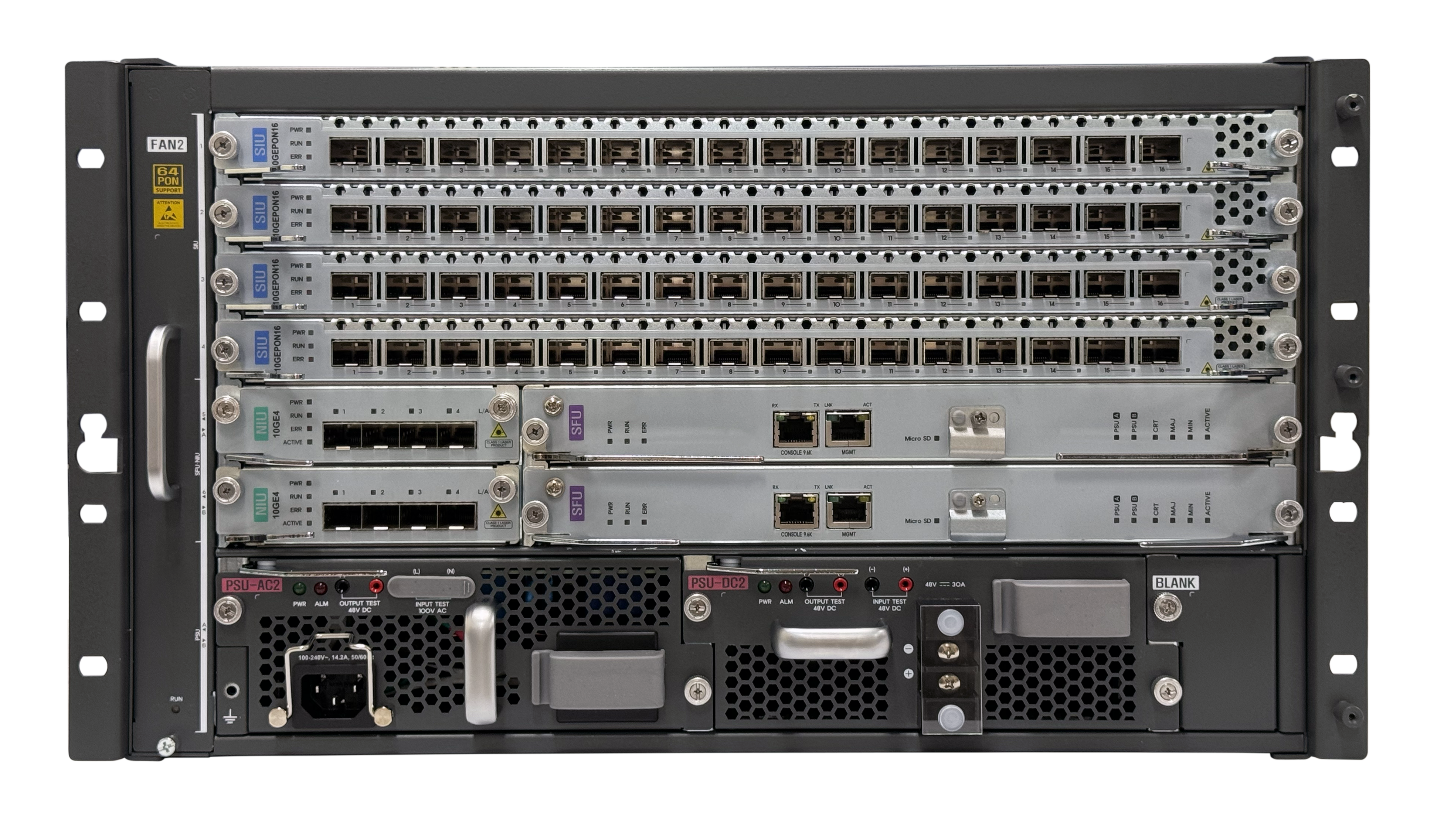

V8300F 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V8300F is a 6RU height chassis PON Optical Line Termination (OLT) supporting 64 1G/10G EPON ports as well as a Layer 3 switch of supporting 8 10GE ports Active Ethernet service. It terminates the traffic coming from the subscriber lines and consoli-dates it on one or more Gigabit Ethernet interfaces towards the metro­politan area. It is a middle-density chassis system that supports up to 8,192 residential and business subscribers with 64 10G-EPON ports (1:128 split ratio). It also provides simultaneous services of EPON and Gigabit Ethernet. V8300F features flexible and high capacity PON access and 10GE uplinks, scalability and line rate performance with a 1440Gbps non-blocked switch fabric.

Features

• 1440Gbps switching capacity
• 64 Ports 10G-EPON OLT solution
• Support full Redundancy(PON, SFU, PWR, FAN)
• Ultra low latency
• Scalability and line rate performance
• Outstanding scalability and line rate performance
• Real-time network traffic monitoring and analysis
• Management via Dasan Management System
• SNMPv2/v3 with RMON, and Alarming
• L2/L3/L4 H/W based ACL
• User password protected system management
• Clock : SyncE, IEEE1588, 802.1AS

Specification

Flash Memory:

8MB(Boot) + 128MB(NOS)

SDRAM Memory:

4GB (DDR3)

Interface:

4 Slot for SIU
- SIU_10GEPON16 (SFP+)
2 Slot for NIU
- NIU_10GE4 (SFP+)

Operating Temperature:

0 ~ 40°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

20 ~ 80% (non-condensing)

Power:

DC -48VDC
AC: 90~120VAC

Power Consumption:

1046W (DC) 1146W (AC)

Dimensions (W x H x D):

482.6 x 265.9 x 270.0 mm (Wing Bracket included)

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/subnet/protocol-based VLAN
• Spanning tree: STP, RSTP, MSTP
• 802.3ad link aggregation

Layer 3

• IPv4 routing / IPv6 routing
• RIPv1/v2, OSPFv2, BGPv4

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM
• IGMP snooping

EPON 10G-EPON

• Fully compliant with IEEE 802.3ah
• DBA based on SLA
• Type-B redundancy
• Remote ONT/ONU management
• Deployments of FTTH/FTTB environments

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3, RMON

QoS

• Traffic scheduling (SP, WRR, DRR)
• 8 queues per port
• Advanced traffic management
