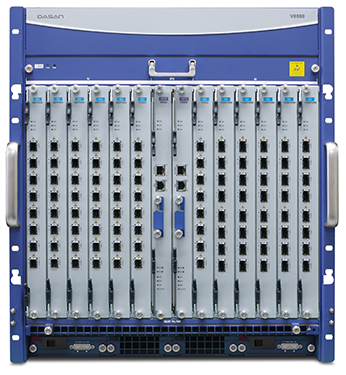

V8500 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V8500 is the next generation MSAP (Multiple Service Access Platform) for supplied Gigabit service to subscriber, so basically EPON/10G-EPON service designed to handle demanding network requirements for Carrier Level or Enter­prise Level as low latency. It enables 10G-EPON to be deployed in the premier area like the building, bank, securities and so on, which can significantly improve the high bandwidth and stability as level as Carrier. Moreover it does 8/16 EPON and 8 10G­EPON to be located on the Carrier Office, for reducing CAPEX and OPEX as significantly. The V8500 offers 12 Slots for 10GE, 8/16 EPON, 8 10G­EPON, 8/16 GPON and 8 XG-PON. All interfaces ports allow the maximum flexibility. V8500 provides high-bandwidth switching, filtering, and traffic management without delaying data, and large data center grade buffers to keep traffic moving.

Features

• 1920Gbps switching capacity
• 8/16-port GPON OLT solution
• 8-port EPON OLT solution
• 8-port XG-PON OLT solution
• 8-port 10G-EPON OLT solution
• Support full Redundancy(PON, SFU, PWR, FAN)
• Ultra low latency
• Scalability and line rate performance
• Outstanding scalability and line rate performance
• Real-time network traffic monitoring and analysis
• Management via Dasan Management System
• SNMPv2/v3 with RMON, and Alarming
• L2/L3/L4 H/W based ACL
• User password protected system management
• High density 96 ports 10GE / 160 Ports GPON

Specification

Flash Memory:

8MB(Boot) + 128MB(NOS)

SDRAM Memory:

2GB

Service Interface:

10 Slots for IU
- IU_GT24 : 24 GTx ports
- IU_GE24 : 24 GE Optical ports
- IU_10GE8 : 8 10GE ports
- IU_GE8 : 8 GE ports
- IU_GEPON8 : 8 EPON ports
- IU_10GEPON8 : 8 10G-EPON ports
- IU_GPON8 : 8 GPON ports
- IU_GPON16 : 16 GPON ports
- IU_XGPON8 : 8 XG-PON ports

Uplink Interface:

2 Slots for IU
- IU_10GE8 : 8 10GE ports

Operating Temperature:

0 ~ 50°C

Operating Humidity:

5 ~ 90% (non-condensing)

Power:

-48VDC

Dimensions (W x H x D):

482.8 x 532.6 x 242.3 mm (Wing Bracket included)

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/subnet/protocol-based VLAN
• Spanning tree: STP, RSTP, MSTP
• 802.3ad link aggregation

Layer 3

• IPv4 routing / IPv6 routing
• RIPv1/v2, OSPFv2, BGPv4

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM
• IGMP snooping

GPON

• Remote ONT/MDU management
• Automatic ONT ranging
• Multiple T-CONTs per MDU (ONT)• Supports up to 64 (max.128) connections over a single fiber

EPON

• Fully compliant with IEEE 802.3ah
• DBA based on SLA
• Remote ONT/ONU management
• Automatic ONT ranging
• Deployments of FTTH/FTTB environments

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3, RMON
