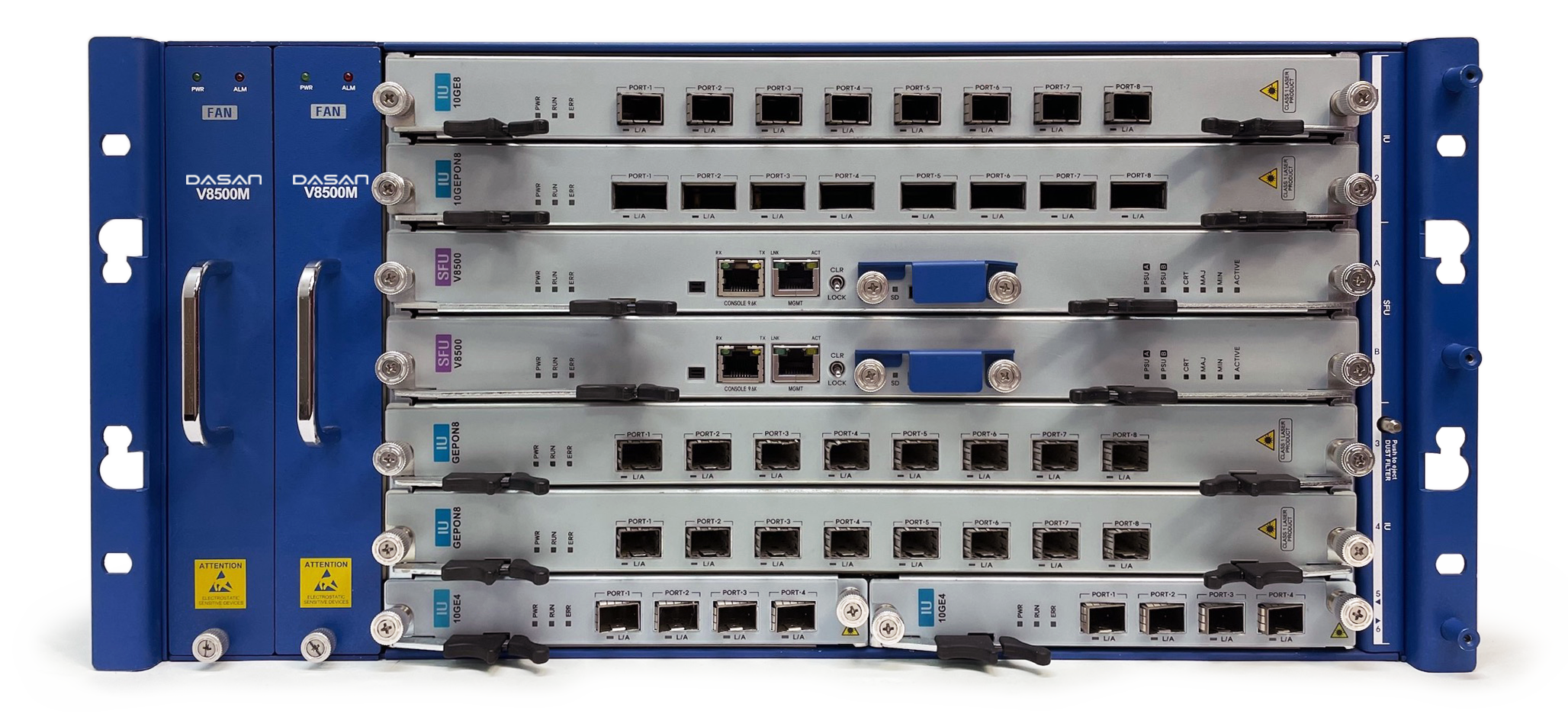

V8500M 사진

Product Leaflet

파일 다운로드

Product Leaflet은 아래의 정보 입력 및 개인정보 관련 동의해주시면
관리자의 승인 후 다운로드 가능합니다.

보안 문자
[전문보기]

Overview

The V8500M is the next generation MSAP (Multiple Service Access Platform) for supplied Gigabit service to subscriber, so basically EPON/10G-EPON service designed to handle demanding network requirements for Carrier Level or Enter­prise Level as low latency. It enables 10G-EPON to be deployed in the premier area like the building, bank, securities and so on, which can significantly improve the high bandwidth and stability as level as Carrier. Moreover it does 8 EPON and 8 10G-EPON to be located on the Carrier Office, for reducing CAPEX and OPEX as significantly. The V8500M offers 4 Slots for 10GE, 8 EPON, 8 10G-EPON and 2 Slots for 10GE. All interfaces ports allow the maximum flexibility. V8500M provides high-bandwidth switching, filtering, and traffic management without delaying data, and large data center grade buffers to keep traffic moving.

Features

• 8-port EPON OLT solution
• 8-port 10G-EPON OLT solution
• Support full Redundancy(PON, SFU, PWR, FAN)
• Ultra low latency
• Scalability and line rate performance
• Outstanding scalability and line rate performance
• Real-time network traffic monitoring and analysis
• Management via Dasan Management System
• SNMPv2/v3 with RMON, and Alarming
• L2/L3/L4 H/W based ACL
• User password protected system management

Specification

Flash Memory:

8MB (Boot) + 128MB (NOS)

SDRAM Memory:

2GB

Service Interface:

4 Slots for IU
- IU_10GE8 : 8 10GE ports
- IU_GE8 : 8 GE ports
- IU_GEPON8 : 8 EPON ports
- IU_10GEPON8 : 8 10G-EPON ports:

Uplink Interface:

- IU_10GE4 : 4 10GE ports

Operating Temperature:

0 ~ 50°C

Storage Temperature:

-40 ~ 70°C

Operating Humidity:

5 ~ 90% (non-condensing)

Power:

DC: -48/60VDC
AC: 100~240VAC

Dimensions (W x H x D):

482.6 x 221.5 x 390 mm

Dimensions (W x H x D):

Capabilities

Layer 2

• Standard Ethernet bridging
• Port/subnet/protocol-based VLAN
• Spanning tree: STP, RSTP, MSTP
• 802.3ad link aggregation

Layer 3

• IPv4 routing / IPv6 routing
• RIPv1/v2, OSPFv2, BGPv4

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM
• IGMP snooping

EPON 10G-EPON

• Fully compliant with IEEE 802.3ah
• DBA based on SLA
• Remote ONT/ONU management
• Automatic ONT ranging
• Deployments of FTTH/FTTB environments

Management

• Serial / Telnet (CLI)
• SNMPv1/v2/v3, RMON
• Traffic scheduling (SP, WRR, DRR)
• 8 queues per port
• Advanced traffic management - metering, egress shaping
